Item # SYSTEM 21
BLIND MOUNT LOUDSPEAKER SYSTEM, COMPLETE WITH ALL HARDWARE, 8C5PAX - 8" O.D. SPEAKER,
Item # SYSTEM 21
BLIND MOUNT LOUDSPEAKER SYSTEM, COMPLETE WITH ALL HARDWARE, 8C5PAX - 8" O.D. SPEAKER,
- UM: EA
- Estimated Weight: 7.0
- Brand: QUAM NICHOLS

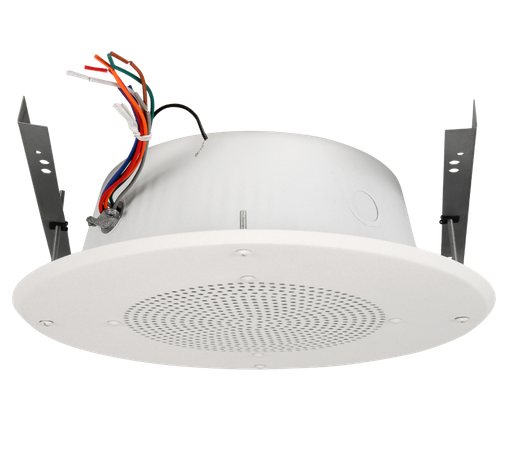

SYSTEM 21 is a complete, recessed mount loudspeaker system for hard ceiling applications. It consists of an 8" O.D., dual cone loudspeaker with a 10 oz. magnet and a 5W, 25/70V transformer mounted on a round, steel, screw mount baffle with a 275 CID, round, steel back box. The baffle and backbox have a white, powder coat finish.
|
APPLICATION |
|
|
Intended Use: |
Indoor environment |
|
Program Material: |
Signal tones, voice and music |
|
Installation: |
Hard ceiling, recessed mount |
|
AUDIO PERFORMANCE |
|
|
Average Sensitivity: |
95dB SPL, 1W/1M |
|
Loudspeaker Power Rating: |
20W RMS, EIA 426A Standard |
|
Calculated Output: |
102dB 5WSPL, /1M |
|
Magnet Type & Weight: |
BeFe Ceramic, 10 oz. Nominal |
|
Frequency Response: |
65Hz - 17kHz, EIA 426A Standard |
|
Nominal Coverage Angle: |
100° Included Angle, -6dB/2 kHz, Half Space |
|
Audio Connection: |
7, Color-coded, Pre-tinned Leads |
|
COMPONENT |
|
|
Baffle/Loudpspeaker Dimension: |
12 7/8 (Diameter) x Baffle: 5/16 (H) |
|
Backbox Dimension: |
12 5/16 (Diameter) x 4 1/16 (H) |
|
Mounting Support Dimension: |
11 13/16 (W) x ¾ (H) x ¾ (D) |
|
Combined Weight: |
7 lbs. |
|
Loudspeaker Model: |
8C10PAX |
|
Transformer: |
TBLU; 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5W) |
|
Baffle: |
BR8WS |
|
Finish: |
White powder coat finish on baffle and backbox |
|
Backbox: |
ERD8U, steel |
