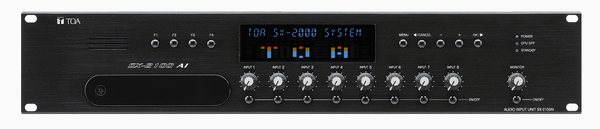

The SX-2100AI is an audio input of the matrix system and can be mounted in an EIA equipment rack (2U size). Multiple units can be decentralized in a whole system. It features modular construction that allows it to handle from two to eight inputs per unit. Audio signals are transmitted digitally to the audio output unit, but an analog audio output function (1 channel) enables simultaneous all-zone calls for use in emergency situations. Audio input levels are indicated on the level meters provided for each input channel. Volumes can be adjusted for each channel using the volume controls on the front panel or the SX-2000 software. The volume controls can be locked. Any input channel can be monitored using the internal speaker. It is also equipped with 16 control inputs, and 16 control outputs. It is equipped with two power inputs, allowing for a redundant power system.

FEATURES

• - Matrix system in combination with an audio input unit, audio output unit, and remote microphone
• - Audio signal routing and priority control
• - 8 control inputs, 8 control outputs
• - Failure status outputs, failure data inputs/switches
• - Access indicators, mode indicators and failure indicators enabling a wide range of controls and status monitoring
• - Control can be performed by way of a CF card inserted into the SX-2000SM unit
• - Operations can be recorded and their contents stored on a CF card as an operation log
• - Two power inputs for creation of a dual-redundant power system
• - Automatic voice announcement for emergency purpose available
• - System settings via Dual LAN connection
