SWI-35HDLNN | 3.5MM Locking Stereo Plug, nickel handle, nickel plug, 0.250" cable opening

Item # SWI-35HDLNN

3.5MM Locking Stereo Plug, nickel handle, nickel plug, 0.250" cable opening

  • Submit Quote for Pricing
  • Log in to see if custom discounts apply
  • Minimum Order Qty: 100

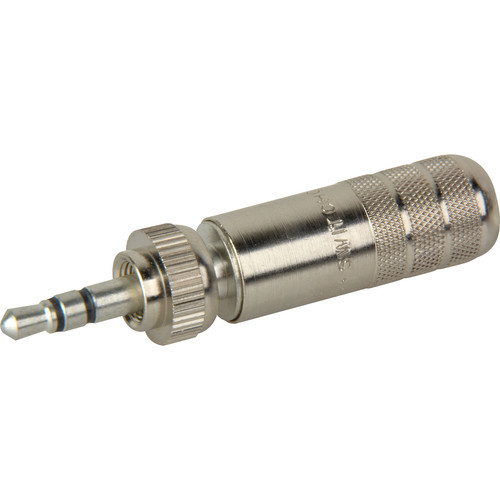

    SWI-35HDLNN 3.5MM Locking Stereo Plug, nickel handle, nickel plug, 0.250" cable opening
    SWI-35HDLNN 3.5MM Locking Stereo Plug, nickel handle, nickel plug, 0.250" cable opening
    Click image to enlarge

    3.5MM (1/8" mini) Locking Stereo Plug, nickel handle, tin plug, 0.290" cable opening. Mates with: 35RAPC Series

    FEATURES

    • - Contact Resistance:  20 MilliOhms Max.
    • - Dielectric Withstanding Voltage:  250 VAC Min.
    • - Insulation Resistance @ 500 VDC:  2,000 MegaOhms Min.
    • - Max. Working Voltage:  250 VAC; 140VDC
    • - Current Carry @ Working Voltage:  4 Amps
    • - Insertion/Withdrawal Force:  Typical 2.5/2 Lbs.
    • - Temperature Range:  -20ºC to 85ºC (operating)
    • - Thermal Shock:  MIL-STD-202, Method 107G
    • - Vibration:  MIL-STD-202, Method 201
    • - Life:  5,000 Cycles
    • - Cable Size:  .250 Dia. Max.



    More Info

    • UM: EA
    • Pkg Qty: 100
