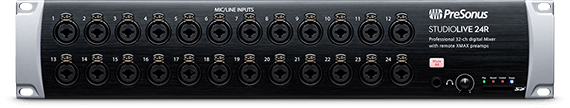

Item # STUDIOLIVE 24R
46X26 DIGITAL RACK MIXER WITH 24 RECALLABLE XMAX PREAMPS
Item # STUDIOLIVE 24R
46X26 DIGITAL RACK MIXER WITH 24 RECALLABLE XMAX PREAMPS
- UM: EA
- Estimated Weight: 15.7
- Brand: PRESONUS
Inside the StudioLive 24R, you’ll find the dual-core PreSonus FLEX DSP Engine powering 40 mixing channels, 22 mix buses, and 270 simultaneous processors, including 4 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. Add an NSB 8.8 stage box, and you’ve got an analog input and output for every channel and bus. This is a true 32-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad, Android tablet, or Windows Touch computer using UC Surface. UC Surface was designed to make mixing on a touch screen as intuitive as mixing on faders but with the benefit of allowing you to mix front-of-house from anywhere in the venue.
Features
· Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
· 36 input-channel digital rack mixer
o 24 local digitally controlled XMAX mic/line inputs
o 4 FLEX FX returns
· 26 mix buses
o 16 FlexMixes (Aux, Subgroup, Matrix)
o 4 dedicated FLEX FX buses
o Stereo Main bus
· 286 simultaneous processors
o HPF
o Gate/Expander
o Compressor with Fat Channel plug-in models
o 4-band/6-band parametric EQ with Fat Channel plug-in models
o Limiter
o 31-band graphic EQ
o 4 FLEX FX slots featuring legendary classic reverb emulations and delays
· State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
· FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
· 24 DCAs to control groups of channels
· 128-channel (64x64) recording over USB
· Onboard stereo SD recorder with true Virtual Soundcheck mode
· AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
o Monitor Mix and Stage Box mode for use with StudioLive Series III console mixers
o Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
· Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
· Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
· Capture 3.0 multitrack software included
o Automated Virtual Soundcheck
o Store StudioLive mix scenes with your audio
· Advanced Studio One integration (Studio One Artist Included)
o XMAX mic preamp control from Studio One
o Control Fat Channel parameters from Studio One mixing console
· Ableton Live Lite included
|
Microphone Preamplifier |
|
|
Input Type |
Combo locking XLR mic-¼” TRS line |
|
Frequency Response to Main Output (at unity gain) |
20-20 kHz, ±0.5 dBu |
|
Input Impedance |
1 kO |
|
THD to Main Output |
<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd |
|
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) |
94 dB |
|
Common Mode Rejection Ratio (1 kHz at unity gain) |
65 dB |
|
Gain Control Range (±1 dB) |
0 dB to +60 dB |
|
Maximum Input Level (unity gain) |
+12 dBu |
|
Phantom Power (±2 VDC) |
48 VDC, switchable per channel |
|
Unbalanced Inputs (Ch. 23-24) |
|
|
Type |
RCA Female, unbalanced (stereo pair) |
|
Maximum Input Level |
+12 dBu, ±0.5 dBu |
|
Main Outputs |
|
|
Type |
XLR Male, balanced |
|
Maximum Output Level |
+24 dBu, ±0.5 dBu |
|
Output Impedance |
100O |
|
Mix Outputs |
|
|
Type |
¼” TRS Female, balanced |
|
Maximum Output Level |
+18 dBu, ±0.5 dBu |
|
Output Impedance |
100O |
|
Headphone Output |
|
|
Type |
¼” TRS Female, active stereo |
|
Maximum Output |
100 mW/ch. @ 60O load |
|
Frequency Response |
20 Hz – 20 kHz (± 0.5 dB) |
|
THD+N |
0.01%, 1 kHz, max gain, 20 Hz BW, unwtd |
|
S/N Ratio |
96 dB, 1 kHz, max gain, 20 Hz BW, unwtd |
|
System Crosstalk |
|
|
Input to Output |
-90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) |
|
Adjacent Channels |
-87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) |
|
Digital Audio and Control |
|
|
ADC Dynamic Range |
115 dB (A-wtd, 48 kHz) |
|
DAC Dynamic Range |
115 dB (A-wtd, 48 kHz) |
|
USB Recording Port |
USB 2.0, Type-B |
|
Network Control Port |
RJ-45 |
|
AVB Audio Network Port |
Locking XLR Ethernet |
|
Internal Processing |
32-bit, ?oating point |
|
Sampling Rate |
48 kHz, 44.1 kHz |
|
A/D/A Bit Depth |
24 |
|
Reference Level for 0 dBFS |
+18 dBu |
|
Total System Latency |
1.9 ms (local routing, analog in-analog out, all processing active) |
|
Clock |
|
|
Jitter |
<20 ps RMS (20 Hz - 20 kHz) |
|
Jitter Attenuation |
>60 dB (1 ns in, 1 ps out) |
|
Power / Environmental |
|
|
Connector |
IEC |
|
Input-Voltage Range |
100 to 230 VAC (±10%) |
|
Power Requirements (continuous) |
85W |
|
Recommended Ambient Operating Temperature |
0° to 40° Celsius / 32° to 104° Fahrenheit |
|
Physical |
|
|
Height |
3.5” (90 mm) |
|
Width |
19” (483 mm) |
|
Depth |
12” (305 mm) |
|
Weight |
10.8 lbs. (4.9 kg) |
