Item # STUDIO SUB

COMPACT SUBWOOFER, FREQ. RANGE: 28HZ-356HZ, NOMINAL IMPEDANCE: 8O

  • Call for Price
  • Log in to see if custom discounts apply

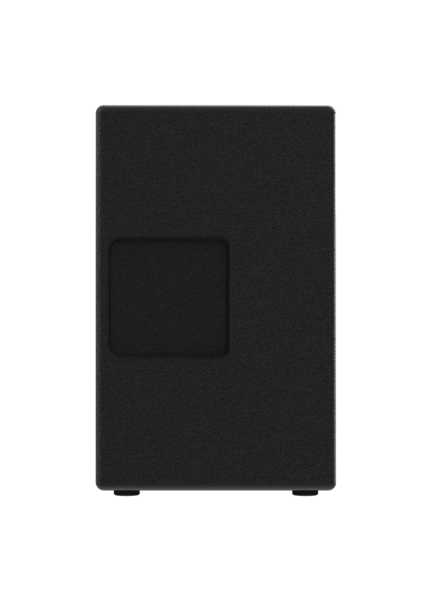

    STUDIO SUB COMPACT SUBWOOFER, FREQ. RANGE: 28HZ-356HZ, NOMINAL IMPEDANCE: 8O
    Click image to enlarge
    STUDIO SUB COMPACT SUBWOOFER, FREQ. RANGE: 28HZ-356HZ, NOMINAL IMPEDANCE: 8O

    Item # STUDIO SUB

    COMPACT SUBWOOFER, FREQ. RANGE: 28HZ-356HZ, NOMINAL IMPEDANCE: 8O

    • UM: EA
    • Estimated Weight: 60.0
    • Brand: DANLEY

    Need to master down to 30 Hz? Add the Studio Sub to your existing system or pair them with the Danley Studio One for a unique and accurate listening experience. These “bookshelf” subwoofers produce a wide range from 28Hz to 356Hz efficiently, requiring only an 800-watt amplifier. And yet this small subwoofer isn’t just another unique design, as Tom Danley also implemented a new form of acoustic bandpass – one which allows the two 8-inch woofers to work best in the frequency range intended. This reality also significantly reduces coloration from harmonic distortion and results in a very pure recreation of the original source.



    Features

    • Low distortion, smooth bass response
    • 30 Hz to 70 Hz
    • Dual 8” woofers



    Operating Frequency Range

    33Hz-109Hz-3dB,
    28Hz-356Hz-10dB

    Continuous Output

    117 dB SPL

    Peak Output

    123 dB SPL

    Sensitivity

    91 dB

    Driver Complement

    2 x 8" woofers

    Dimensions

    14 x 22.5 x 14 inches

    Weight

    60 lbs

    Rated Impedance

    8 Ohms

    Power Rating

    400W continuous,
    1,600W peak

    Documents
