Item # SMLPM

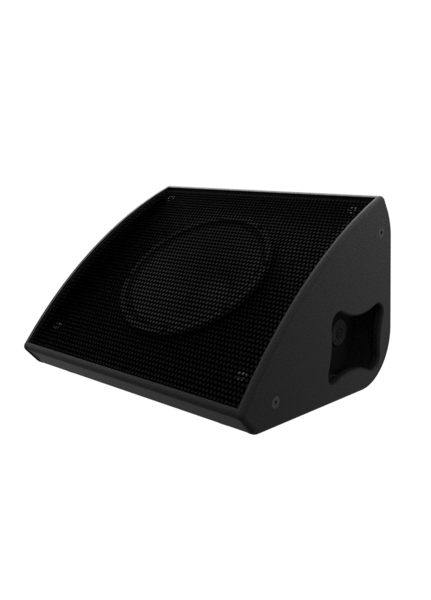

LOW PROFILE MONITOR - 8" COAXIAL SPEAKER
Item # SMLPM
LOW PROFILE MONITOR - 8" COAXIAL SPEAKER
- UM: EA
- Brand: DANLEY
Due to the large horn mouth, the Danley SM LPM offers substantial directivity with front to back rejection and high gain before feedback. High frequencies are very smooth throughout the coverage pattern and there is no beaming. The SM LPM sets a new benchmark in floor monitor loudspeakers. It is provided with 2 NL4MP connectors contained within each recessed handle.
|
Coverage Pattern |
110° conical |
|
Operating Frequency Range |
60Hz-20KHz +/- 3dB, |
|
Continuous Output |
120 dB SPL |
|
Peak Output |
126 dB SPL |
|
Sensitivity |
95 dB SPL (2.83V into rated Z, at 1 meter) measured in half space |
|
Magnitude Response |
60Hz-20KHz |
|
Driver Complement |
1 x 8" coaxial |
|
Dimensions |
13.6 x 21.5 x 18 inches |
|
Weight |
41 lbs |
|
Rated Impedance |
8 Ohms |
|
Power Rating |
300W continuous, |
