SM96-I | 90 X 60 DEGREE, 2 X 8" LF, 5"/1" COAXIAL SPEAKER (INSTALLATION VERSION)
Item # SM96-I
90 X 60 DEGREE, 2 X 8" LF, 5"/1" COAXIAL SPEAKER (INSTALLATION VERSION)
Click image to enlarge

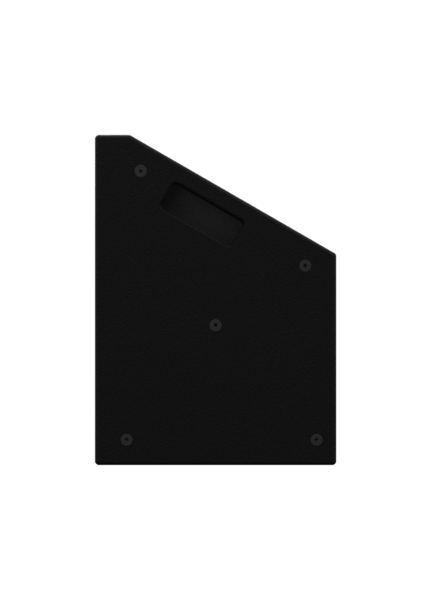

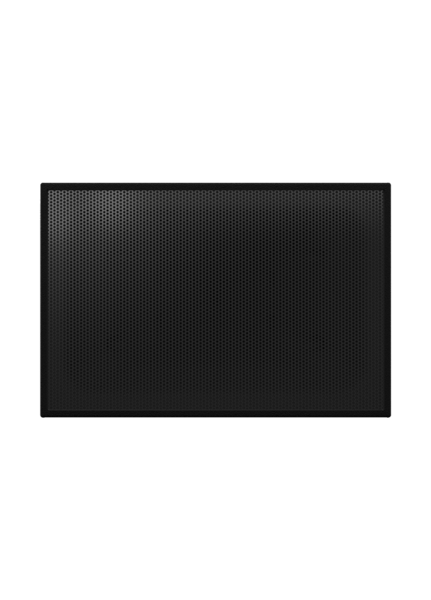

The SM96-I is a compact loudspeaker featuring a 90° horizontal by 60° vertical coverage pattern. It incorporates modular array capabilities, allowing for configurable system setups. The enclosure is designed to maintain consistent low-frequency pattern control and precise magnitude and phase response.
This model is suitable for both installation and touring applications, offering a compact form factor while delivering defined directional coverage and frequency performance.
| Coverage pattern | 90° horizontal |
|---|---|
| Operating frequency range | 55 Hz – 24 kHz ±3 dB |
| Continuous output | 124 dB SPL |
| Peak output | 130 dB SPL |
| Sensitivity | 98 dB SPL |
| Magnitude response | 55 Hz – 24 kHz |
| Driver complement | 2 x 8″ low |
| Rated impedance | 4ohms |
| Power rating | 800W continuous |
