Item # SM100M-B

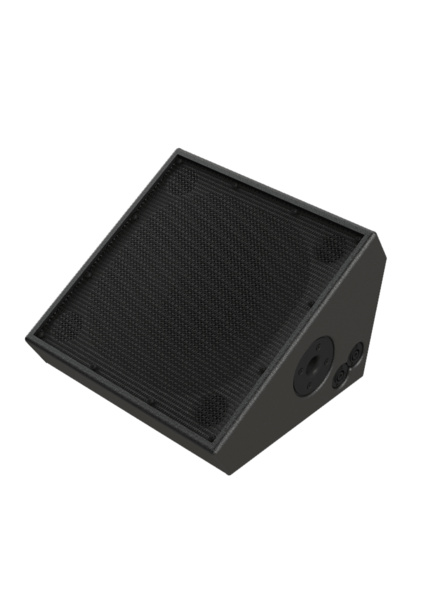

PASSIVE MONITOR- LOW PROFILE WEDGE STYLE MONITOR. THE SM100M IS A WEDGE STYLE MONITOR THAT OFFERS
Item # SM100M-B
PASSIVE MONITOR- LOW PROFILE WEDGE STYLE MONITOR. THE SM100M IS A WEDGE STYLE MONITOR THAT OFFERS
- UM: EA
- Estimated Weight: 41.0
- Brand: DANLEY
Combining accuracy, fidelity and economy, the SM100M is a wedge style monitor that offers wide dispersion with front to back rejection and high gain before feedback.
|
Coverage Pattern |
110° conical |
|
Operating Frequency Range |
70Hz-20KHz +/- 3dB, |
|
Continuous Output |
120 dB SPL |
|
Peak Output |
126 dB SPL |
|
Sensitivity |
95 dB SPL (2.83V into rated Z, at 1 meter) measured in half space |
|
Magnitude Response |
70Hz-20KHz |
|
Driver Complement |
1 x 8" coaxial |
|
Dimensions |
16 x 13.5 x 20.7 inches |
|
Weight |
41 lbs |
|
Rated Impedance |
8 Ohms |
|
Power Rating |
300W continuous, |
