SM100 | 100 X 100 DEGREE, FULL RANGE CABINET (INSTALL/PORTABLE VERSION) / 8 OHMS / 1 X 8" COAXIAL DRIVER
Item # SM100
100 X 100 DEGREE, FULL RANGE CABINET (INSTALL/PORTABLE VERSION) / 8 OHMS / 1 X 8" COAXIAL DRIVER
Click image to enlarge

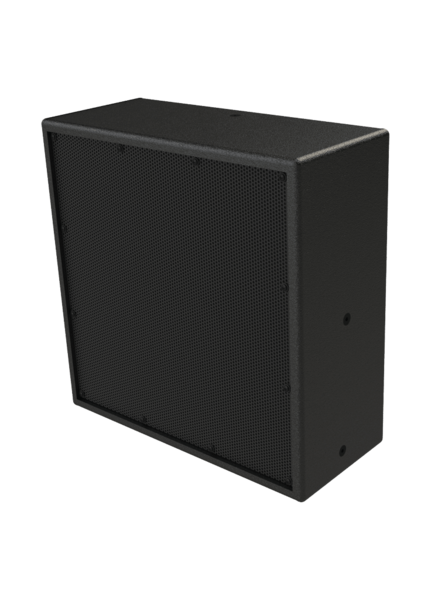

The SM100 is a two-way full-range speaker featuring a 100-degree dispersion angle. It provides wide sound coverage and precise pattern control. The design supports a broad frequency response suitable for various audio applications.
This speaker is engineered for consistent sound reproduction and controlled dispersion, making it compatible with multiple system configurations.
| Coverage pattern | 110° conical |
|---|---|
| Operating frequency range | 70 Hz – 20 kHz ±3 dB |
| Continuous output | 120 dB SPL |
| Peak output | 126 dB SPL |
| Sensitivity | 95 dB SPL |
| Magnitude response | 70 Hz – 20 kHz |
| Driver complement | 1 × 8″ coaxial |
| Rated impedance | 8ohms |
| Power rating | 300W continuous |
| Item name | SM100 |
Downloads
×
