Item # SM-075-ASB
SOCKETMOUNT, WALL MOUNT, ADJ, STOWABLE,BLACK. 180 DEGREE HORIZONTAL SWIVEL MAX, 15 DEGREE TILT FROM
Item # SM-075-ASB
SOCKETMOUNT, WALL MOUNT, ADJ, STOWABLE,BLACK. 180 DEGREE HORIZONTAL SWIVEL MAX, 15 DEGREE TILT FROM
- UM: EA
- Estimated Weight: 8.0
- Brand: ADAPTIVE TECHNOLOGIES

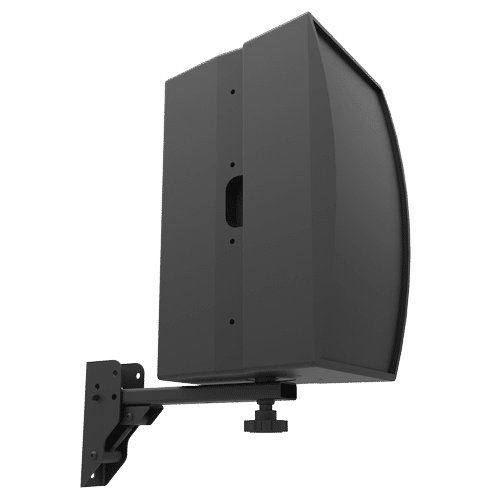

The Adjustable SocketMount mounts and aims loudspeakers that are equipped with pole sockets to walls and other vertical structures. Both pan and tilt rotations are provided for optimum aiming and it’s support arm folds down when not in use. It’s easy on-easy, easy-off feature allows loudspeakers to move to multiple locations such as other SocketMounts and tripod stands, thus reducing the need for more loudspeakers and saving floor space.
The SocketMount’s unique expandable post assembly fits into the loudspeakers pole socket and, when tightened, locks the speaker onto the arm. An innovative screw drive tilt mechanism provides up to 15 degrees of down angle from the horizontal position while offering 180° of horizontal pan angle.
Features
Saves floor space
Arm stows against wall when not in use
Allows speakers to be moved from place to place
Independent pan and tilt adjustments
Expansion post locks inside of speaker and sets pan angle
Post fits standard diameter sockets
|
Material |
Structural steel alloy |
|
Finish |
Powder coat |
|
Color |
Black and white |
|
Pan rotation |
180° horizontal swivel max. |
|
Tilt rotation |
15° down tilt from horizontal |
|
Working load |
50 lbs. / 23 kg. |
|
Design factor |
10:1 ratio |
|
Net weight |
6 lbs./3 kg. |
|
Shipping weight |
7 lbs./4 kg. |
|
Pack count |
1 unit/carton |
