Item # SKM 500 G4-GW1
HANDHELD TRANSMITTER. MICROPHONE CAPSULE NOT INCLUDED, FREQUENCY RANGE: GW1 (558 - 608 MHZ)
Click image to enlarge
Item # SKM 500 G4-GW1
HANDHELD TRANSMITTER. MICROPHONE CAPSULE NOT INCLUDED, FREQUENCY RANGE: GW1 (558 - 608 MHZ)
- UM: EA
- Estimated Weight: 2.0
- Brand: SENNHEISER

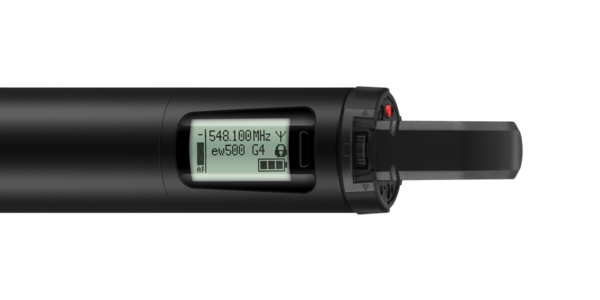

Powerful handheld transmitter with a lightweight black aluminum housing, increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.
Features:
- Your choice of Sennheiser‘s renowned state-of-the-art e 935, e 945, e 965 capsules
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
| Total harmonic distortion (THD) | = 0.9 % |
|---|---|
| Audio frequency response (Hz) | 80 – 18,000 Hz |
| Audio frequency response | 80 to 18,000 Hz |
| Signal-to-noise ratio | = 115 dBA |
| Battery operating time (h) | Typically 8 h |
| Dimensions | Approx. Ø 50 x 265 mm |
| Weight (g) | (incl. batteries) approx. 450 g |
| Product weight (g) | (incl. batteries) approx. 450 g |
