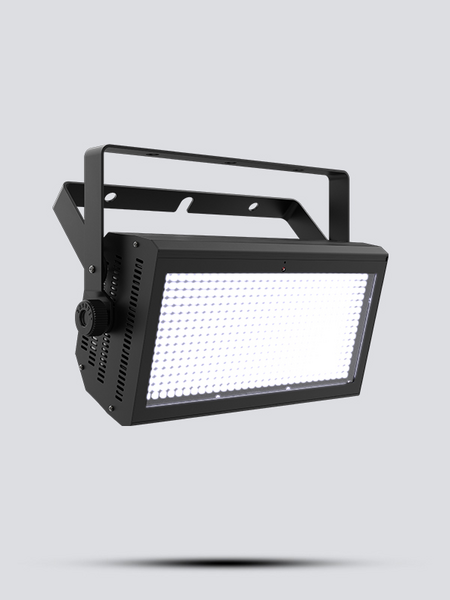

SHOCKERPANEL480 | SINGLE-ZONE BINDER WITH COOL WHITE SMD LEDS
Item # SHOCKERPANEL480
SINGLE-ZONE BINDER WITH COOL WHITE SMD LEDS
Click image to enlarge
Shock celebrations to dynamic life with Shocker Panel 480, a punchy, single-zone blinder with cool white SMD LEDs. As a blinder or strobe, eye-catching effects can be triggered easily with the built-in display, DMX, or with the optional IRC6 remote. Shocker Panel 480 is ready for the road too with its rugged housing that makes it ideal for mobile applications and powerCON-compatible power input/output connections for secure power linking.
Features:
- Punchy, single-zone blinder with cool white SMD LEDs
- Rugged housing makes it ideal for mobile applications
- Trigger eye-catching strobe effects via the built-in display, DMX, or with the optional IRC6 remote

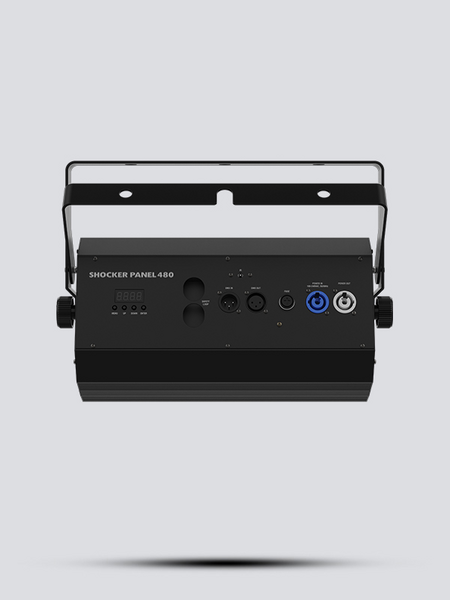

- powerCON-compatible power input/output connections for power linking
- Save time running cables and extension cords by power linking multiple units
- Easily transports in the optional CHS-25 VIP gear bag
| DMX Channels | 4 |
|---|---|
| DMX Connectors | 3-pin XLR |
| Light Source | 480 SMD LEDs (cool white) 0.7 W (236 mA), 50,000 hours life expectancy |
| Strobe Rate | 0 to 28 Hz |
| Beam Angle | 111° |
| Field Angle | 155° |
| Illuminance | 1,348 lux @ 2 m |
| Lumens | 14,974 |
| Power Linking | 5 units @ 120 V; 9 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Weight | 9.4 lb (4.3 kg) |
| Size | 13.1 x 4.5 x 6.7 in (332 x 115 x 170 mm) |
| Power and Current | : 208 W, 2.7 A @ 120 V, 60 Hz |
| Power and Current | : 200 W, 1.5 A @ 230 V, 50 Hz |
| Bracket Mounting Hole | ;: 13 mm |
| Optional Controllers | : IRC6 |
| Approvals | : CE, UKCA |
×
