SHMINI-W | 100° CONICAL MINI WEDGE, 1 X 8" COAXIAL DRIVER, PASSIVE INSTALL VERSION, WHITE

Item # SHMINI-W

100° CONICAL MINI WEDGE, 1 X 8" COAXIAL DRIVER, PASSIVE INSTALL VERSION, WHITE

  • Submit Quote for Pricing
  • Log in to see if custom discounts apply
    SHMINI-W 100° CONICAL MINI WEDGE, 1 X 8" COAXIAL DRIVER, PASSIVE INSTALL VERSION, WHITE
    SHMINI-W 100° CONICAL MINI WEDGE, 1 X 8" COAXIAL DRIVER, PASSIVE INSTALL VERSION, WHITE
    Click image to enlarge

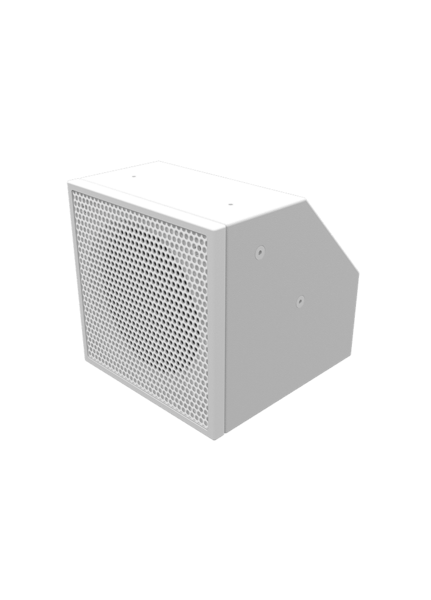

    The SHMINI-W is a miniature loudspeaker engineered for applications requiring wide coverage. It is designed to provide full-range audio performance within a compact enclosure. The unit can also function as a compact floor monitor.

    Coverage Pattern 100° conical
    Operating Frequency Range 125 Hz–18 kHz ±3 dB
    Continuous Output 111 dB SPL
    Peak Output 117 dB SPL
    Sensitivity 88 dB SPL (2.83 V at 1 m, free space)
    Magnitude Response 125 Hz–18 kHz
    Driver Complement 1 × 8″ coaxial
    Rated Impedance 8 Ohms
    Power Rating 200 Watts continuous
    • UM: EA
    • Estimated Weight: 22.5
    Search Tags:
    LOUDSPEAKER
