SHDFA-W | 50 X 50 DOWFILL SPEAKER USED UNDER THE SH50, PASSIVE INSTALL VERSION, WHITE
Item # SHDFA-W
50 X 50 DOWFILL SPEAKER USED UNDER THE SH50, PASSIVE INSTALL VERSION, WHITE

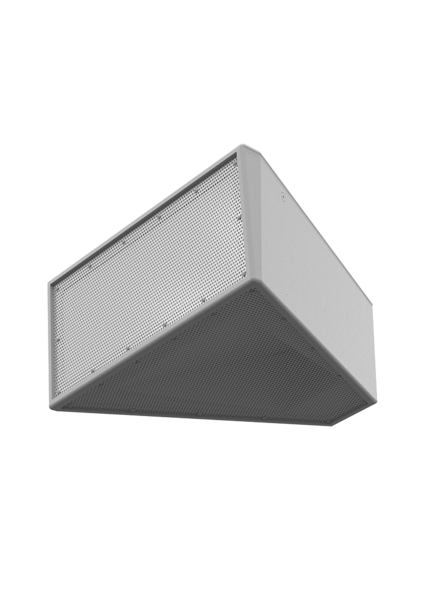

Click image to enlarge
The SHDFA-W is an asymmetrical horn designed for integration with the SH50 using mounting brackets. It matches the SH50's footprint and measures 13 inches in height. The horn provides asymmetrical coverage with a vertical angle of 50° (front to back) and a horizontal coverage of 50° at the front and 100° at the back, offering pattern control due to its depth.
The front grille of the unit is decorative only. The horn is located at the bottom of the assembly.
| Coverage Pattern | 50° x 100° H asymmetric |
|---|---|
| Operating Frequency Range | 350 Hz – 18 kHz ±3 dB |
| Continuous Output | 122 dB SPL |
| Peak Output | 128 dB SPL |
| Sensitivity | 96 dB SPL |
| Magnitude Response | 350 Hz – 18 kHz |
| Driver Complement | 1 x 10″ Low/Mid |
| Rated Impedance | 8 Ohms |
| Power Rating | 400 Watts Continuous |
