SH69-I-W | 60 X 90 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE INSTALL VERSION, WHITE

Item # SH69-I-W

60 X 90 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE INSTALL VERSION, WHITE

  • Submit Quote for Pricing
  • Log in to see if custom discounts apply
    SH69-I-W 60 X 90 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE INSTALL VERSION, WHITE
    SH69-I-W 60 X 90 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE INSTALL VERSION, WHITE
    Click image to enlarge

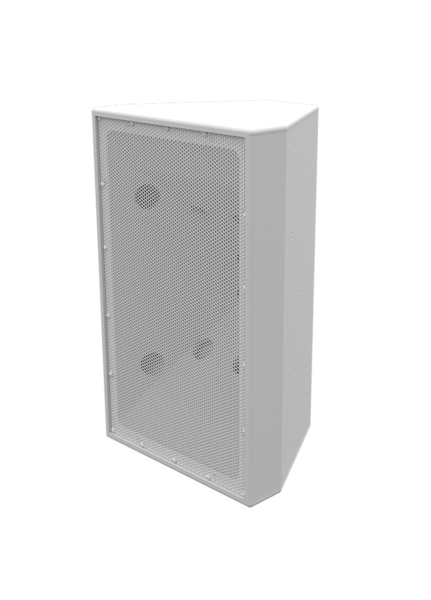

    The SH69-I-W is a compact, lightweight full-range loudspeaker designed for wide pattern sound projection. It incorporates performance characteristics similar to the SH50 model but offers a wider pattern.

    Coverage Pattern 60°
    Operating Frequency Range 55 Hz – 18 kHz ±3 dB
    Continuous Output 126 dB SPL
    Peak Output 132 dB SPL
    Sensitivity 99 dB SPL
    Driver Complement 2 x 12" low drivers
    Rated Impedance 4 Ohms
    Power Rating 1000 Watts continuous
    • UM: EA
    • Estimated Weight: 116.0
