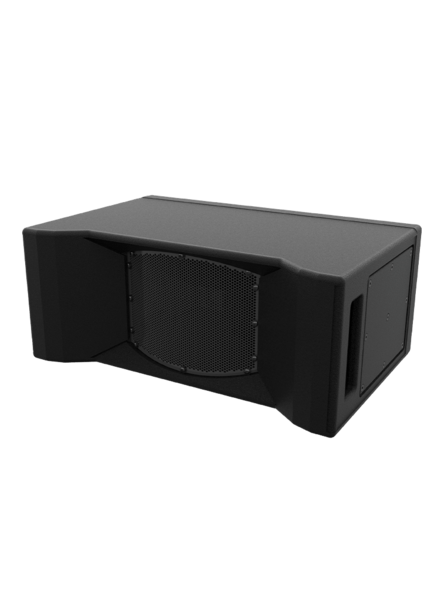

The SH110 is a 2-way, passive loudspeaker designed as a front fill. The SH110-4 includes 2 x 8? low-frequency drivers and a 1.4? exit high frequency compression driver, all mounted within a single 110° x 60° horn. Utilizing our patented Synergy Horn™ technology, we uniquely place drivers within the horn in unison with a Synergy crossover network to allow for proper phase alignment between frequency bands. This permits the physically separated bands to combine and emerge from the horn as a single source, greatly reducing off axis distortions in frequency response and allowing for greater clarity at long distances. Furthermore, out of band harmonic distortion is reduced by the use of acoustic low pass filters on the low and mid frequency drivers.

The 13-ply Baltic Birch used throughout the enclosure is encased PolyUrea for protection from impact and atmospheric conditions. Install and touring versions are both equipped with multiple M10 rig points. Our EW (Extreme Weather) variant offers the ultimate in protection from the elements due to the use of high-density polyurethane panels impregnated with fiberglass fibers in the place of standard plywood.

As an added layer of protection we include our Sentinel™ high frequency driver protection circuitry which is a multistage limiter that protects the high frequency driver in the event of overloads (peaks or long term). It is inaudible during normal operation, so dynamic range is not compromised. Utilize our DNA amplifiers or processor for maximum performance and protection with industry leading DSP capabilities.
