Item # SF-XMN4
MICROPHONE TO NETWORK INTERFACE - DANTE
Item # SF-XMN4
MICROPHONE TO NETWORK INTERFACE - DANTE
- UM: EA
- Brand: RDL

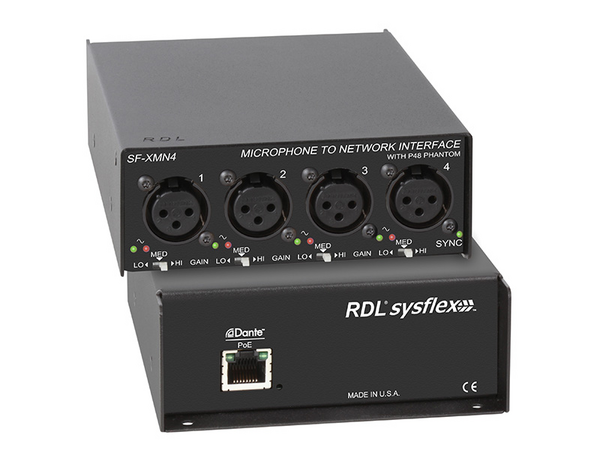

The SF-XMN4 is an interface that converts four XLR microphone inputs to Dante network audio channels. Special software is not required to configure the SF-XMN4. Each XLR input is equipped with a switch to set the gain for dynamic or condenser microphones. A dual-LED VU meter displays the level for each input to facilitate selection of the ideal gain range. P48 phantom voltage is supplied to each microphone input. The SF-XMN4 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance.
The SF-XMN4 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.
The SF-XMN4 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX® product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX® products adds enormous flexibility in the design and installation of professional A/V systems.
Features:
- Dante Network Interface for Four Audio Mic Inputs
- Each XLR Input Provides Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
- 48 V Mic Phantom (P48) on each input
- Four XLR Front-Panel Inputs
- Converts Four Standard XLR Mic Audio Sources to Dante Network Channels
- Special Software Not Required for Module Setup
- High Resolution 24 Bit Analog to Digital Conversion
- LED Indicator for Valid Power and Network Sync
- Operation from PoE Power (Class 0, IEEE 802.3af)
- Equipped for SysFlex Rack Mounting or Surface Mounting
| Network Connector | RJ45 with Link and Speed indicators |
|---|---|
| Digital Audio Ethernet Protocol | Dante |
| Transmission Rate | 100 Mbps |
| Sample Rates Supported | 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz |
| Bit Depth Supported | 24 bits |
| Audio Operating Level | -20 dBFS = +4 dBu |
| Reference Level | 0 dBFS = +24 dBu |
| Inputs (4) | XLR (female) |
| Gain | Mic: 40 dB (LO), 48 dB (MED), 62 dB (HI) front-panel selectable |
| Input Level (for +4 dBu/-20 dBFS) | Mic: -36 dBu (LO), -44 dBu (MED), -58 dBu (HI) |
| Input Level (maximum) | Mic: -16 dBu (LO), -24 dBu (MED), -38 dBu (HI) |
| Input Impedance | > 2.5 kΩ |
| Phantom Power | P48, 48 Vdc |
| Standard for Phantom | IEC 61938: 2013 |
| Frequency Response | 20 Hz to 20 kHz (± 0.5 dB) |
| Equivalent Input Noise | -130 dBu (62 dB gain) -132 dBu A-Weighted |
| Noise below -20 dBFS (20 to 20 kHz) | Mic: < -72 dB (LO), < -72 dB (MED), < -68 dB (HI) |
| THD+N | < 0.1% (20 Hz to 20 kHz, +4 dBu/-20 dBFS) 0.015% at 1 kHz (typ) |
| CMRR | > 65 dB (50 Hz to 120 Hz) |
| Crosstalk | Below Noise Floor (20 Hz to 20 kHz at operating level, any input to any input, max. mic gain) |
| Indicators (11) | Ethernet Link and Speed (2, rear panel) Sync (front panel) dual-LED VU meter (8 LED, front panel) |
| Ambient Operating Environment | 0° C to 50° C |
| Power Requirement | PoE Class 0, IEEE 802.3af |
| Specification Conditions | Gain/Level: ± 1 dB Source termination: 150 Ω A to D values measured in digital domain |
| Dimensions | 4.23" (10.74 cm) W 1.68" (4.27 cm) H 5.77" (14.66 cm) D |
| Package Type | Cardboard Box |
| Package Dimensions | 7 x 4.375 x 2.25 in. |
| Shipping Weight | 1.445 lbs. |
| WEEE weight | 1.23 lbs. |
| Tariff code | 8543.70.9100 |
