Item # SF-BNC2
BIDIRECTIONAL UNBALANCED STEREO AUDIO NETWORK INTERFACE - DANTE
Item # SF-BNC2
BIDIRECTIONAL UNBALANCED STEREO AUDIO NETWORK INTERFACE - DANTE
- UM: EA
- Estimated Weight: 1.3
- Brand: RDL

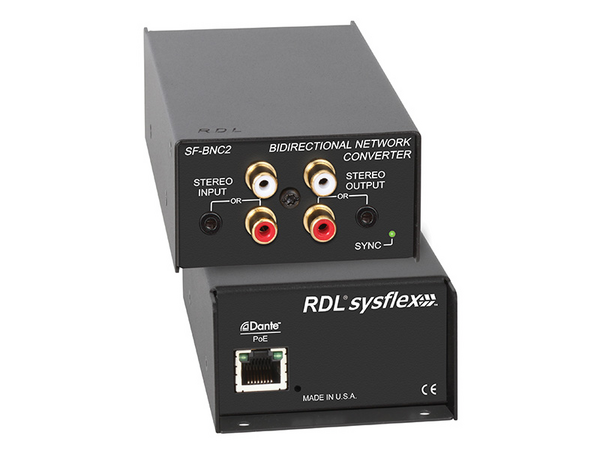

The SF-BNC2 is a bidirectional Dante audio network interface. It features two unbalanced audio inputs (left and right) on RCA or stereo 3.5 mm Mini-jack connectors, as well as two unbalanced audio outputs (left and right) on RCA and stereo 3.5 mm Mini-jack connectors. Special software is not required to configure the SF-BNC2. Each input provides a network digital audio level of -20 dBFS for an unbalanced -10 dBV input. Each output provides -10 dBV unbalanced for a network digital audio level of -20 dBFS. The SF-BNC2 is a professional grade product for studio quality fidelity and low noise performance.
The SF-BNC2 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.
The SF-BNC2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX® product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX® products adds enormous flexibility in the design and installation of professional A/V systems.
Features:
- Dante Network Interface for Two Audio Inputs and Two Audio Outputs
- Inputs and Outputs on Front-Panel RCA Jacks and Stereo 3.5 mm Mini-Jacks
- Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- Converts Two Unbalanced Line-Level Audio Sources to Dante Network Channels
- Converts Two Dante Network Audio Signals to Unbalanced Line Level
- Special Software Not Required for Module Setup
- Exceptional Low-Noise and Low-Distortion Performance
- High Resolution 24 Bit Digital to Analog Conversion
- Legendary RDL Analog Filtering Enhances Superb Audio Performance
- LED Indicator for Valid Power and Network Sync
- Operation from PoE Power (Class 0, IEEE 802.3af)
- Equipped for SysFlex Rack Mounting or Surface Mounting
| TYPICAL PERFORMANCE | |
|---|---|
| Network Connector | RJ45 with Link and Speed indicators |
| Digital Audio Ethernet Protocol | Dante |
| Transmission Rate | : 100 Mbps |
| Sample Rates Supported | 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz |
| Bit Depth Supported | 24 bits |
| Bit Depth Supported | -20 dBFS = -10 dBV |
| Reference Level | 0 dBFS = +10 dBV |
| Line Inputs to Network Interface | |
| Inputs (4) | Mini-jack Stereo or RCA jacks (2, L and R) |
| Input Level (for +4 dBu/-20 dBFS) | -10 dBV nominal |
| Input Level (maximum) | +10 dBV |
| Input Impedance | > 15 kΩ |
| Frequency Response | 20 Hz to 20 kHz (± 0.5 dB) |
| Noise below -20 dBFS (20 to 20 kHz) | < -80 dB |
| Crosstalk | < -85 dB (L into R, R into L, 20 Hz to 20 kHz) |
| THD+N | 0.02% at 1 kHz (typ) |
| Headroom | 20 dB |
| Network to Line Outputs | |
| Outputs (4) | Mini-jack Stereo or RCA jacks (2, L and R) |
| Output Level (operating) | -10 dBV nominal |
| Output Level (maximum) | +10 dBV |
| Output Impedance | 40 Ω |
| Frequency Response | 20 Hz to 20 kHz (± 0.5 dB) |
| THD+N | < 0.1% |
| Noise | < -75 dB (below -10 dBV) |
| Crosstalk | < -70 dB (20 Hz to 20 kHz) |
| Headroom above -10 dBV | 20 dB |
| Indicators (3) | Ethernet Link and Speed (2, rear panel) Sync (front panel) |
| Ambient Operating Environment | 0° C to 50° C |
| Power Requirement | PoE Class 0, IEEE 802.3af |
| Specification Conditions | Gain/Level: ± 1 dB Source termination: 150 Ω A to D values measured in digital domain |
| Dimensions | 2.79" (7.09 cm) W 1.68" (4.27 cm) H 5.77" (14.66 cm) D |
| Package Type | Cardboard Box |
| Package Dimensions | 7 x 4.375 x 2.25 in. |
| Shipping Weight | 1.115 lbs. |
| WEEE weight | 0.905 lbs. |
| Tariff code | 8543.70.9100 |
