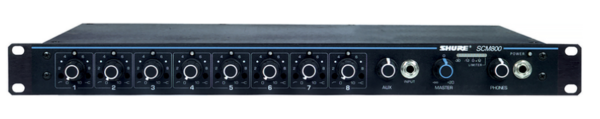

The Shure SCM800 is a professional-grade 8-channel microphone mixer designed for high-performance audio applications such as sound reinforcement, broadcast, A/V installations, and conference systems. Each channel offers transformer-balanced XLR inputs with 48V phantom power, mic/line switch, low-cut filter, and an individual level control. The SCM800 includes a master level control, logic control ports, LED peak indicators, and a built-in limiter to ensure optimal audio performance and system protection. Expandable via the rear-link connectors, multiple SCM800 units can be linked together for larger systems. Known for its reliability and versatility, the SCM800 is the ideal choice for integrators and installers seeking consistent, high-quality microphone mixing in demanding environments.

• Compatible with Shure SCM410, SCM810 and FP410 automatic microphone mixers
• Adjustable EQ per channel: low-frequency rolloff and high-frequency shelving
• 48 V phantom power selectable for each input
• Active balanced microphone- and line-level inputs and line level output
• Highly RF-resistant chassis and circuitry
• LED indication of channel clipping
• Linking capability for systems up to 32 microphones
• Two Aux-level input jacks that feed one channel
• Insert jack on each channel
• Manual mixing of input channels
• Internal Modification permits 230 V operation (SCM800) or 120 V operation (SCM800E)
• Front-panel headphones output with level control
• Peak-responding output limiter with selectable thresholds and LED indicator

Any low-impedance, balanced dynamic or condenser microphone, including a wireless microphone system, can be used with the SCM800 mixer.

Up to four SCM800 mixers can be linked to provide up to 32 input channels.

Each input channel has a two-band equalizer, switchable microphone- or line-level operation, switchable 48 V phantom power, and a 1/4-inch send/receive insert jack.
