Item # SCM262
STEREO MIXER FOR USE WITH 2 MICROPHONES AND 3 STEREO SOURCES, WITH DUCKING AND PHANTOM POWER
Item # SCM262
STEREO MIXER FOR USE WITH 2 MICROPHONES AND 3 STEREO SOURCES, WITH DUCKING AND PHANTOM POWER
- UM: EA
- Estimated Weight: 6.0
- Brand: SHURE

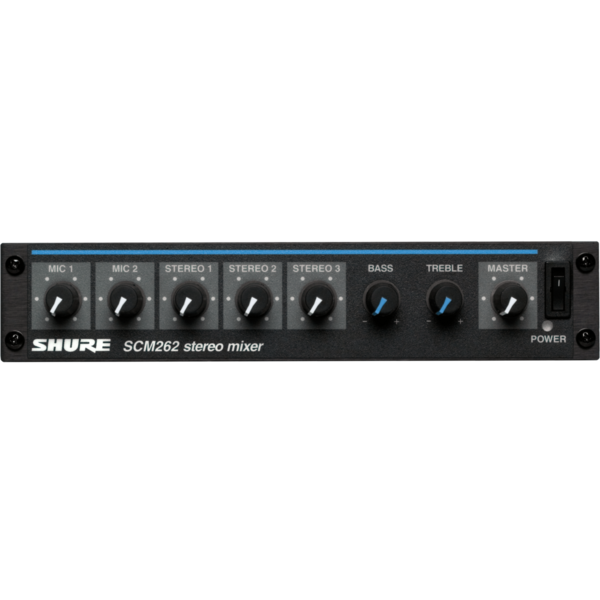

The Shure Model SCM262 is a stereo mixer intended for sound reinforcement applications that integrate microphones with consumer stereo products. It incorporates two active-balanced microphone inputs with three unbalanced stereo aux level inputs.
The SCM262 Stereo Mixer is designed for restaurants, classrooms, corporate training, aerobics classes, and other situations where a paging/public announcement system is combined with background music or other program material.
Features
Designed to combine paging with background music

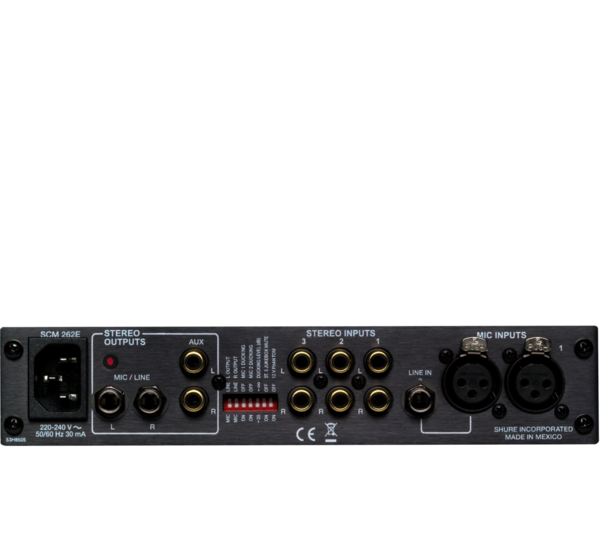

One active-balanced, XLR microphone input channel
One active-balanced XLR microphone and 1/4-in. TRS line input channel
Three STEREO INPUT channels
Stereo AUX level OUTPUTs
Stereo MIC/LINE OUTPUTs
BASS and TREBLE tone controls on the master output
1/2-rack chassis
12 V phantom power for condenser microphones
Internal power supply
Removable power cable
Ducking function (defeatable)
Jukebox mute function (defeatable)
|
Frequency Response |
at 1 kHz |
|
Low-Cut Filter |
-6 dB/octave below 80 Hz |
|
Total Harmonic Distortion |
1 kHz, +4 dBu out, mix output (MASTER) at +0 dB, <0.25% |
|
Equivalent Input Noise |
150? balanced source, A-Weighted, -128 dBV |
|
Output Noise |
channel controls full counterclockwise, A-Weighted |
|
Common Mode Rejection |
>70 dB, at 1 kHz |
|
Polarity |
All inputs to all outputs are non-inverting. |
|
Overload and Shorting Protection |
Shorting outputs, even for prolonged periods, causes no damage.Microphone inputs are not damaged by signals up to +10 dBV; Line and Aux inputs by signals up to +28 dBV |
|
Phantom Power |
12 Vdc open-circuit through 680 ? resistors |
