Item # SAS-100-CM
STEERABLES CEILING MOUNT - SUSPENDS & AIMS FLYABLE LOUDSPEAKERS UP TO 100LBS FROM THE CEILING
Item # SAS-100-CM
STEERABLES CEILING MOUNT - SUSPENDS & AIMS FLYABLE LOUDSPEAKERS UP TO 100LBS FROM THE CEILING
- UM: EA
- Estimated Weight: 10.4
- Brand: ADAPTIVE TECHNOLOGIES

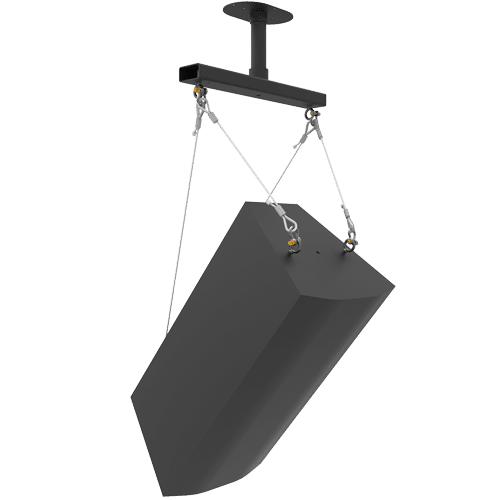

The Steerables Ceiling Mount, SAS-100-CM, suspends and aims loudspeakers and other objects weighing up to 100 lbs/45 Kg up close to ceiling and other overhead surfaces.
This design is ideal for applications where cabinets equipped with suspension points need to be suspended and aimed, close but out of reach of the audience. Typical applications include churches, schools, gymnasiums, auditoriums, theme parks, nightclubs, bars and restaurants.
Loudspeaker cabinets equipped with suspension or mounting points can be easily mounted and aimed from ceilings and other structurally secure overhead structures with unprecedented ease of installation and precise adjustments.
Features
Suspends and aims flyable and mountable loudspeakers
Secures to ceiling and other overhead structures using standard schedule 40, 1-1/2" diameter pipe.
More headroom keeps cabinets out of reach
Unique cross arm steering mechanism offers 360° of pan control
Significant reductions in installation and planning time
Adapts to standard Adaptive U-Series mounts and Steerables Tilt Cable Kits
|
Material |
Structural Steel Alloy |
|
Finish |
Powder Coat |
|
Color |
Black |
|
Pan Rotation |
360° horizontal swivel max. |
|
Working Load Limit |
100 lbs./45 kg. |
|
Design Factor |
10:1 ratio based on ultimate yield point |
|
Net Weight |
11.5 lbs./5.2 Kg. |
|
Shipping Weight |
12.5 lbs./5.7 Kg |
|
Pack Count |
1/carton |
