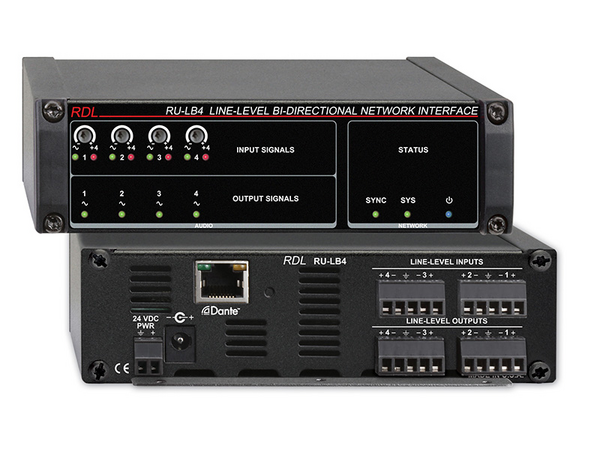

LINE-LEVEL BI-DIRECTIONAL NETWORK INTERFACE - 4 BALANCED LINE INPUTS, DANTE INPUT - 4 BALANCED LINE
Item # RU-LB4
LINE-LEVEL BI-DIRECTIONAL NETWORK INTERFACE - 4 BALANCED LINE INPUTS, DANTE INPUT - 4 BALANCED LINE
- UM: EA
- Brand: RDL
The TX-PD8X is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to eight modules from a single power supply. The current limiting circuitry in many switching power supplies will cause the supply to shut down upon power-up when a high current capacitive load is connected. Upon application of power, the TX-PD8X ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. If reverse polarity is connected to the input, the TX-PD8X disconnects the load until the condition is corrected.
In system design, various modules are frequently operated from a single power supply. Good engineering practice requires that the power wiring to each module originate at the power supply output. The TX-PD8X serves as the power source for each of eight modules. The TX-PD8X normally provides power to ground-referenced modules. A front-panel switch permits the installer to enable external control. When the ON terminal is connected to ground, the TX-PD8X outputs are active. External control is possible using RDL detection or control modules, open-collector outputs from OEM equipment or controllers, or using a D-RT2 RDL remote wall control. The front-panel blue LED remains illuminated when the outputs are active.
Features:
- Converts Standard Line-Level Audio Sources to Dante Network Channels
- Line-Level Inputs Accept Unbalanced -10 dBV or Balanced+4 dBu Signals with >18 dB Headroom
- Front-Panel Gain Adjustment with Dual-LED VU Meter for Each Audio Input
- Converts Four Dante Network Audio Signals to Balanced Line Level
- Line-Level Outputs Provide +4 dBu with >18 dB Headroom
- Signal LEDs Indicate Audio for Each of the Received Network Signal Channels
- Interfaces Four Dante Inputs and Four Dante Outputs
- High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
- Legendary RDL Analog Filtering Enhances Superb Audio Performance
- LED Indicators Show Network Sync Status
- Normal or Hot-Standby Operation from PoE (Model RU-LB4P)
- Equipped for Rack Mounting or Surface Mounting
| Network Connector | RJ45 with Link and Speed indicators |
|---|---|
| Digital Audio Ethernet Protocol | Dante |
| Transmission Rate | 100 Mbps |
| Sample Rates Supported | 44.1 kHz, 48 kHz (default) |
| Bit Depth Supported | 24 bits |
| Audio Operating Levels | -18 dBFS = +4 dBu |
| Line Inputs to Network Interface Section | |
| Inputs (4) | Balanced, detachable terminal block |
| Input Level for +4 dBu | -16 dBu to +12 dBu, +22 dBu maximum |
| Input Impedance | > 20 kΩ |
| Frequency Response | 20 Hz to 20 kHz (± 0.5 dB) |
| THD+N | < 0.05% |
| Noise below +4 dBu | < -80 dB |
| CMRR | > 60 dB (50 Hz to 120 Hz) |
| Crosstalk | < 85 dB (20 Hz to 20 kHz) |
| Headroom above +4 dBu | > 18 dB |
| Network to Line Level Interface Section | |
| Outputs (4) | Balanced, detachable terminal block |
| Output Level | +4 dBu (nominal) |
| Output Impedance | 150 Ω balanced 75 Ω unbalanced |
| Frequency Response | 20 Hz to 20 kHz (± 0.5 dB) |
| THD+N | < 0.05% |
| Noise below +4 dBu | < -80 dB (output active) < -95 dB (outputs muted) |
| Crosstalk | < 85 dB (20 Hz to 20 kHz) |
| Headroom above +4 dBu | > 18 dB |
| Indicators (17) | Power In (1) Output Signal LEDs (4) Input Dual-LED VU Meters (8) Network Sys and Sync (2), Ethernet Link and Speed (2) |
| Power Connections (2) | Power Jack Detachable Terminal Block |
| Ambient Operating Environment | 0° C to 40° C |
| Power Requirement | 24 Vdc @ 140 mA plus connected loads, or PoE (RU-LB4P) |
| PoE (RU-LB4P) | Class 0, IEEE 802.3af |
| Dimensions | 5.8" (15 cm) W 1.7" (4.3 cm) H 5.2" (13.2 cm) D |
| Package Type | Cardboard Box |
| Package Dimensions | 6 x 6 x 2.625 in. |
| Shipping Weight | 1.705 lbs. (RU-LB4) 1.73 lbs. (RU-LB4P) |
| WEEE weight | 1.445 lbs. (RU-LB4) 1.47 lbs. (RU-LB4P) |
| Tariff code | 8543.70.9100 |
