Item # REMRB100CMIP
RUGGED IP65-RATED RIG BARS, HANG VIDEO WALLS OVERHEAD / GROUND STACKING WITH GROUNDSUPPORT2KIT
Item # REMRB100CMIP
RUGGED IP65-RATED RIG BARS, HANG VIDEO WALLS OVERHEAD / GROUND STACKING WITH GROUNDSUPPORT2KIT
- UM: EA
- Brand: CHAUVET PROFESSIONAL

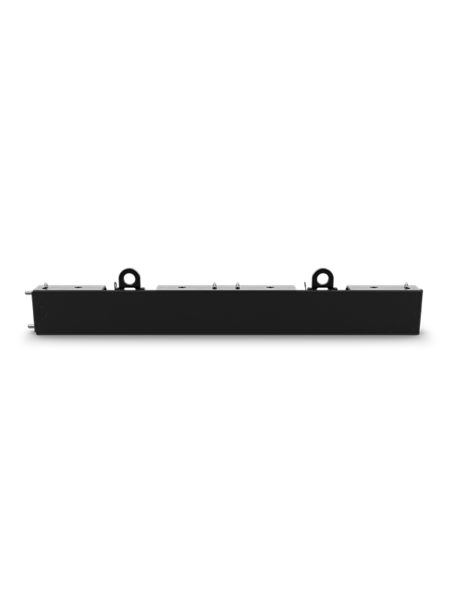

REM-RB100CMIP and REM-RB50CMIP are rugged IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.
Features
REM Rig Bar, used for both overhead hanging and ground stacking
Works with CHAUVET REM video panels
Equipped hoist ring supports standard rigging hardware for overhead hanging (1/2” and 5/8” shackles)
Included Clamp attachment bracket (DRB-CTC) allows for direct connection using M12 bolts in clamps using TRUSST CTC-50HC
|
Dimensions |
39.35 x 2.36 x 4.72 in (999.6 x 60 x 120 mm) |
|
Weight |
16.8 lb (7.62 kg) |
|
Exterior Color |
Black |
|
Housing Material |
Aluminum extrusion, stainless steel |
|
Load Capacity (hanging) |
1,710.8 lb (776 kg) |
|
Load Capacity (stacking) |
1,752.70 lb (795 kg) |
|
Recommended Shackle Sizes |
1/2”, 5/8” |
|
IP Rating |
IP65, temporary outdoor/wet use |
