Item # PS-150NPS-2
SADDLE BRACKET TRUSS MOUNT PROVIDES A LOAD RATED VERTICAL HANG POINT FROM OVERHEAD TRUSS
Item # PS-150NPS-2
SADDLE BRACKET TRUSS MOUNT PROVIDES A LOAD RATED VERTICAL HANG POINT FROM OVERHEAD TRUSS
- UM: EA
- Estimated Weight: 3.8
- Brand: ADAPTIVE TECHNOLOGIES

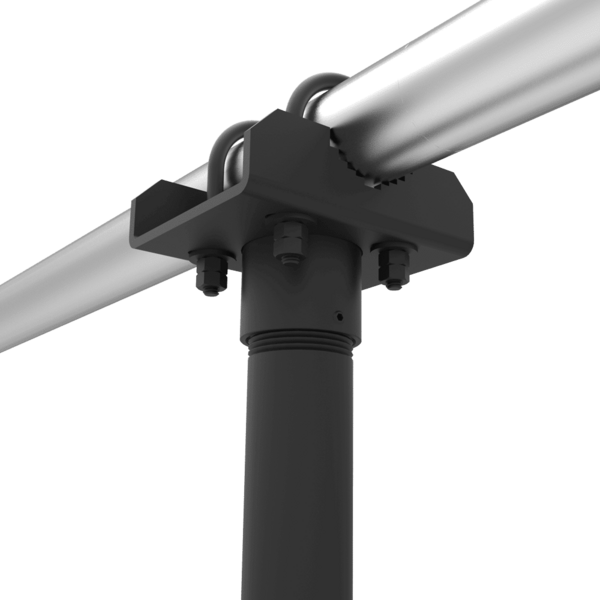

Adaptive Saddle Truss Mounts provide a load rated vertical hang point from overhead truss and offers a secure and load rated suspension point suspending objects with 1-1/2” diameter schedule 40 pipe (NPT & NPS). Saddle Mounts attach directly to box trussing, lighting truss and other theatrical pipe applications with cord diameters measuring between 1-3/8” OD” to 2-1/2” OD” and provide a vertical connection for 1-1/2” schedule 40 pipe. The Saddle Mount kit includes the powder coated mount with built in set screw lock, two U-Bolts and related hardware.
Ideal applications include but are not limited to performing centers, auditoriums, theatres, studios, theme parks, retail centers and rental and staging events.
Features
Provides load rated suspension point for 1.5” pipe
Accomodates 2” dia pipe & box truss
Powder coat finish
Hardware included
|
Material |
Structural Steel Alloy |
|
Color |
Black |
|
Finish |
Powder Coat |
|
WLL |
240lb / 109kg |
|
Design Factor |
5:1 ratio |
