Item # PRO35CW

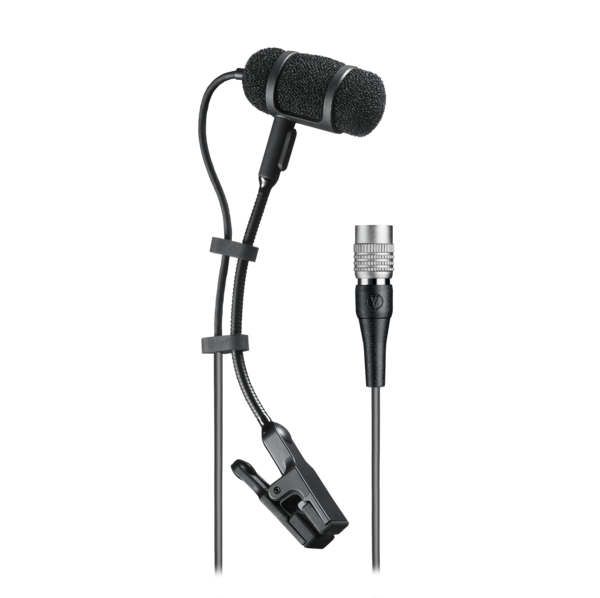

CARDIOID CONDENSER CLIP-ON INSTRUMENT MICROPHONE WITH 55" CABLE TERMINATED WITH LOCKING
Item # PRO35CW
CARDIOID CONDENSER CLIP-ON INSTRUMENT MICROPHONE WITH 55" CABLE TERMINATED WITH LOCKING
- UM: EA
- Estimated Weight: 1.0
- Brand: AUDIO-TECHNICA
Designed for sax, toms, brass, and percussion, the PRO 35 excels in high-SPL applications and is ideal for active stage performances. Its extended frequency response captures subtle nuances of the performance. The included AT8418 UniMount clip permits accurate positioning and provides shock resistance while protecting the element. The microphone’s cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.
55" (1.4 m) permanently attached miniature cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters.
Features
UniMount clip permits accurate positioning, provides shock resistance and protects element
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Extended frequency response captures subtle nuances of the performance
6' (1.8 m) cable permanently attached to microphone
|
Microphones |
|
|
Element |
Fixed-charge back plate, permanently polarized condenser |
|
Polar Pattern |
Cardioid |
|
Frequency Response |
50-15,000 Hz |
|
Low Frequency Roll Off |
80 Hz, 18 dB/octave |
|
Open Circuit Sensitivity |
-45 dB (5.6 mV) re 1V at 1 Pa |
|
Maximum Input Sound Level |
145 dB SPL, 1 kHz at 1% T.H.D. |
|
Dynamic Range |
115 dB, 1 kHz at Max SPL |
|
Signal-to-Noise Ratio |
64 dB, 1 kHz at 1 Pa |
|
Phantom Power Requirements |
11-52V DC, 2 mA typical |
|
Switches |
Flat, roll-off |
|
Weight (Microphone) |
0.3 oz (8 g) |
|
Weight (Power Module) |
2.9 oz (81 g) |
|
Cable |
6.0' (1.8 m) long (permanently attached to microphone), 0.10" (2.6 mm) diameter, 2-conductor, shielded cable with TA3F-type connector |
|
Dimensions (Power Module) |
3.66" (92.9 mm) long, 0.74" (18.9 mm) diameter |
|
Dimensions (Microphone) |
0.98" (25.0 mm) long, 0.40" (10.2 mm) diameter |
|
Output Connector (Power Module) |
Integral 3-pin XLRM-type |
|
Accessories Included |
AT8418 UniMount microphone instrument mount; AT8538 power module; soft protective pouch |
|
Audio-Technica Case Style |
M12 |
