Item # PD6322/95
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 90° X 50° COVERAGE PATTERN.

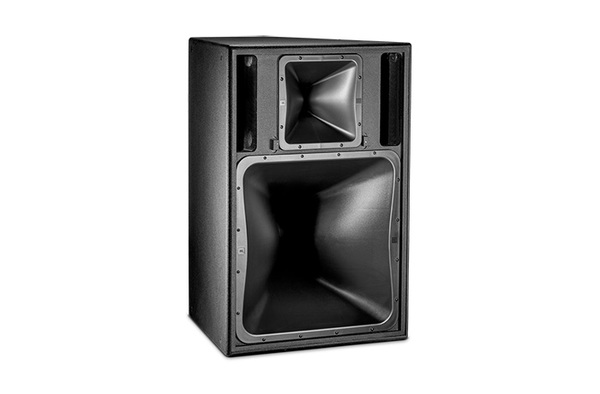

Click image to enlarge
Item # PD6322/95
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 90° X 50° COVERAGE PATTERN.
- UM: EA
- Estimated Weight: 170.0
- Brand: JBL / HARMAN
The PD6322/95 is a dual 12-inch, three-way horn-loaded loudspeaker featuring a 90° x 50° horn for controlled directivity. It provides full-range audio output with low-frequency extension down to 40 Hz. The design supports applications requiring high output sensitivity and precise pattern control, suitable for standalone use in music or speech reinforcement systems.
Features:
- Two high power 300 mm (12 in) transducers for low frequency extension to 40 Hz
- High power CMCD Cone Midrange Compression Driver with high sensitivity, continuous SPL, low distortion, extended bandwidth, and improved phase coherence
- Large format neodymium HF driver for clear high frequency projection
- Large PT Progressive Transition waveguides for consistent pattern control, low distortion, and smooth frequency response
- Rotatable mid and high frequency waveguides for horizontal or vertical orientation
- Steep-slope passive mid high crossover network with switchable tri-amp/bi-amp modes
| Frequency Range | 41 Hz to 17 kHz |
|---|---|
| Frequency Response | 49 Hz to 15 kHz |
| Coverage Pattern | 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50° |
| Crossover Modes | Tri-amp / Bi-amp switchable |
| Passive Crossover | 6th order Linkwitz-Riley HP & LP, 1.5 kHz |
| Transducer Power Rating (AES) | LF 1600 W, MF 350 W, HF 75 W |
| System Power Rating | LF 1200 W, MF/HF 300 W |
| Maximum SPL (1m) | Tri-amp LF 128 dB; MF 134 dB; HF 133 dB; Passive 134 dB |
| System Sensitivity (1W @ 1m) | Passive Mode 109 dB-SPL |
| Nominal Impedance | 4ohms |
