Item # PC-580S AM

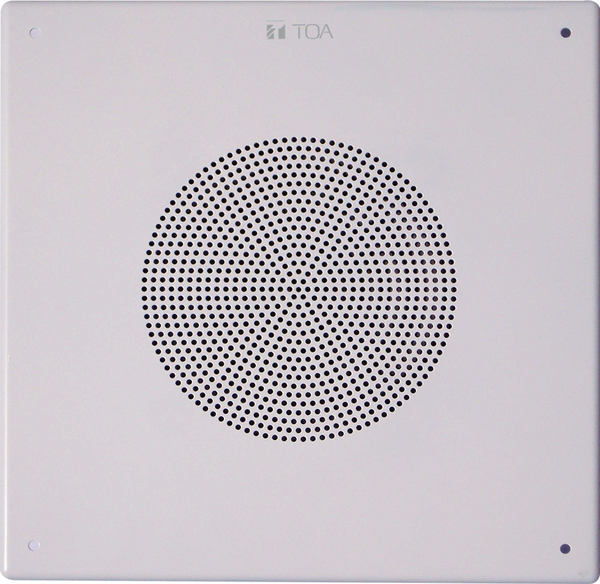

8" 5W @ 25/70V SQUARE BAFFLE PAGING SPEAKER WHITE
Click image to enlarge
Item # PC-580S AM
8" 5W @ 25/70V SQUARE BAFFLE PAGING SPEAKER WHITE
- UM: EA
- Brand: TOA ELECTRONICS
OA’s PC-580S is designed to fill the need for a high-performance, cost effective ceiling speaker for use in general paging and back ground music requirements. The PC-580S can easily be installed into retrofit projects.
Features:
- 8” in-ceiling speaker for high-quality paging applications
- Cost effective design
- 25V & 70V transformer taps up to 5W
- Fits standard ceiling-speaker template
- Unique “monocoque” design provides better structural integrity
- Optional Q-BB-580S or Q-BB-580W back-box
| Rated Input | 5W ( 70.7 V line and 25 V line) |
|---|---|
| Rated Impedance | 70.7 V line: 1 kO (5 W), 2 kO (2.5 W), 5 kO (1 W), 8.3 kO (0.6 W), 16.6 kO (0.3 W) 25 V line: 125 O(5 W), 250 O (2.5 W), 625 O(1 W), 1 kO (0.6 W), 2 kO (0.3 W) |
| Sensitivity (1W, 1m) | 97 dB ( 1 W, 1 m) |
| Frequency Response | 50 Hz - 16.5 kHz |
| Speaker Component | 200 mm ( 8") Dual cone-type |
| Mounting Hole | ø228.6±3 mm ( 9" ±0.12") |
| Speaker Mounting Method | Mounting screw M5 X 38 |
| Connected Cable | Solid wire: ø0.8 - ø1.6 (AWG 20-12) |
| Connection | Push wire connection ( Bridging terminal-2 branch type) |
| Operating Temperature | -10 ·c to +50 ·c (14 'F to 122 'F) |
| Finish | Panel: Steel plate, white, paint Grille: Steel plate, white |
| Dimensions | 318 X 318 X 87 (D) mm (12.52" X 12.52" X 3.43") |
| Weight | 1.90 kg (4.19 lbs) |
| Optional Accessories | Flush mount back box: Q-BB-580S Surface mount back box: Q-BB-580W |
