Item # OS80

HIGH OUTPUT HIGH FIDELITY 80° CONICAL OUTDOOR SPEAKER W/ U-BRACKET, 12" COAX DRIVER, GREY OR BLACK

  • Call for Price
  • Log in to see if custom discounts apply
    OS80 HIGH OUTPUT HIGH FIDELITY 80° CONICAL OUTDOOR SPEAKER W/ U-BRACKET, 12" COAX DRIVER, GREY OR BLACK
    Click image to enlarge
    OS80 HIGH OUTPUT HIGH FIDELITY 80° CONICAL OUTDOOR SPEAKER W/ U-BRACKET, 12" COAX DRIVER, GREY OR BLACK

    Item # OS80

    HIGH OUTPUT HIGH FIDELITY 80° CONICAL OUTDOOR SPEAKER W/ U-BRACKET, 12" COAX DRIVER, GREY OR BLACK

    • UM: EA
    • Estimated Weight: 72.3
    • Brand: DANLEY

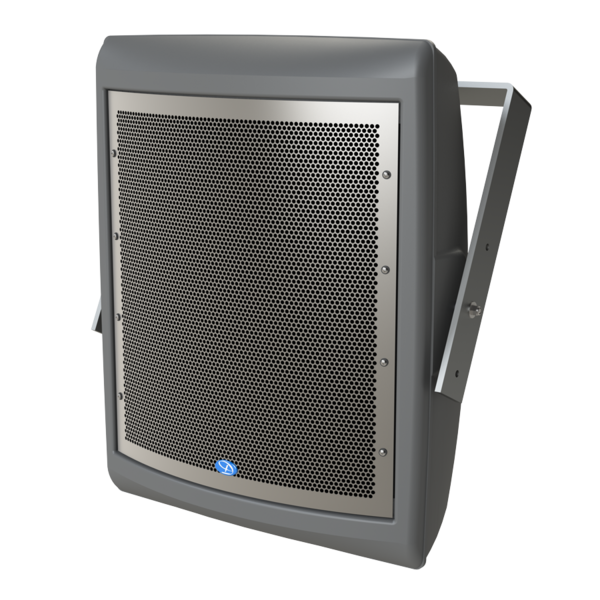

    Danley brings its innovative loudspeaker technologies to the outdoor speaker market. The OS80 is a high-performance speaker in an outdoor enclosure that is impervious to weather. Featuring a high output 12”/1.4” coaxial driver mated to a 80° conical horn, a single cabinet can produce high quality audio beyond 130dB from a compact full range Synergy Horn™ that weighs only 51 pounds. Utilizing a Synergy crossover network allows for proper phase alignment between frequency bands. This permits the physically separated bands to combine and emerge from the horn as a single source, greatly reducing off axis distortions in frequency response and allowing for greater clarity at long distances.  The OS80 includes a heavy-duty aluminum mounting bracket and angle strap.

    As an added layer of protection we include Danley’s Sentinel high frequency driver protection circuitry which is a multistage limiter that protects the high frequency driver in the event of overloads (peaks or long term).  It is inaudible during normal operation, so dynamic range is not compromised.  Utilize Danley’s DNA amplifiers or processor for maximum performance and protection with industry leading DSP capabilities



    Coverage Pattern

    80° Conical

    Operating Frequency Range

    113Hz-18KHz +/- 3dB,
    70Hz-19KHz-10dB

    Continuous Output

    127 dB SPL

    Peak Output

    133 dB SPL

    Sensitivity

    101 dB (2.83V into rated Z, at 1 meter), measured in free space

    Driver Complement

    Low 1 x 12",
    High 1 x 1.4"

    Dimensions

    32.35 x 26 x 14.5 inches

    Weight

    51 lbs

    Rated Impedance

    8 Ohm

    Power Rating

    400W continuous,
    1,600W peak

    Documents

    • Danley OS80 High Output Weatherized Outdoor Speaker Specs
    • View / Download
