OS12CX-G | OUTDOOR SPEAKER - 12" COAXIAL / WEATHER RATED FOR OUTDOOR USE / GREY / U-BRACKET INCLUDED
Item # OS12CX-G
OUTDOOR SPEAKER - 12" COAXIAL / WEATHER RATED FOR OUTDOOR USE / GREY / U-BRACKET INCLUDED
Click image to enlarge

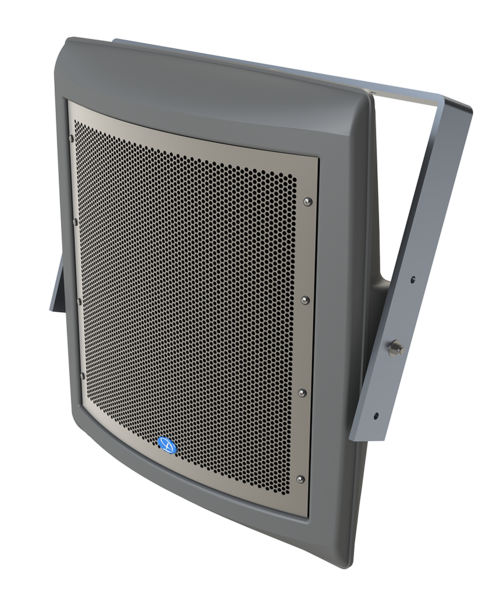

The OS12CX-G is a fully weatherized loudspeaker featuring a 12-inch woofer and 1-inch coaxial driver housed in a compact enclosure. It uses a Synergy Horn design with a Synergy crossover network to achieve phase alignment between frequency bands, resulting in reduced off-axis distortion and consistent frequency response. The loudspeaker is intended for short-throw applications requiring full-range sound reproduction.
| Coverage Pattern | 90° nominal |
|---|---|
| Operating Frequency Range | 69 Hz – 21.7 kHz ± 3 dB |
| Continuous Output | 119 dB SPL |
| Peak Output | 125 dB SPL |
| Maximum Linear SPL 1M AES75 | 131.2 dB SPL |
| Sensitivity | 95 dB (2.83 V at 1 m, whole space) |
| Driver Complement | 1 x 12″ coaxial |
| Rated Impedance | 8 Ohm |
| Power Rating | 300 W continuous |
