Item # ONAIRFLEX12

FULL SPECTRUM LED SOFT CATCH LIGHT, OPERATED VIA ONAIR FLEX DRIVE 2

  • Call for Price
  • Log in to see if custom discounts apply

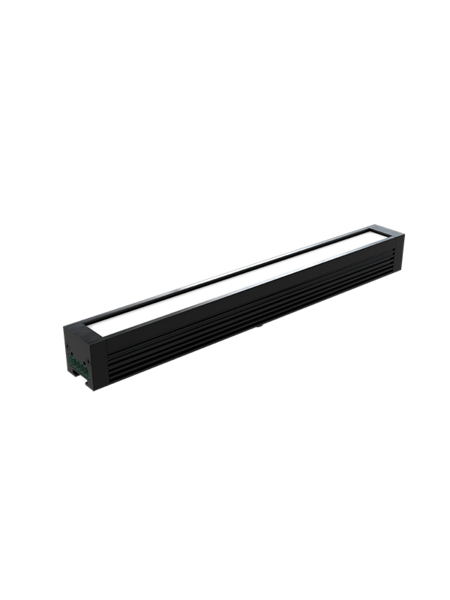

    ONAIRFLEX12 FULL SPECTRUM LED SOFT CATCH LIGHT, OPERATED VIA ONAIR FLEX DRIVE 2
    Click image to enlarge
    ONAIRFLEX12 FULL SPECTRUM LED SOFT CATCH LIGHT, OPERATED VIA ONAIR FLEX DRIVE 2

    Item # ONAIRFLEX12

    FULL SPECTRUM LED SOFT CATCH LIGHT, OPERATED VIA ONAIR FLEX DRIVE 2

    • UM: EA
    • Brand: CHAUVET PROFESSIONAL

    Full spectrum LED soft catch light for short throw studio applications. Easily add a glint to eyes when photographing or filming. High quality 2800K-10000K white light as well as color from a lightweight DMX-controllable lighting accessory that weighs under 1 lb. Completely silent operation. Operated via onAir Flex Drive 2, offering ultra-smooth 16-bit dimming control and adjustable PWM to perform beautifully on camera.

    Features:

    • Full spectrum LED soft catch light for short throw studio applications
    • High quality white light and color
    • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera via onAir Flex Drive
    • Completely silent operation for use in studio applications
    • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme via onAir Flex Drive.
    Light Source 12 LEDs (tri-color RGB) 1.5 W, (150 mA), 50,000 hours life expectancy.
    Light Source 12 LEDs (WW) 0.36 W, (150 mA), 50,000 hours life expectancy
    Color Temperature (range) 2800 to 10000 K
    Color Temperature (at full) 9190 K
    CRI 96
    Beam Angle - Medium 96.1° x 64.3°
    Beam Angle - Light 111° x 62°
    Beam Angle - Heavy 93.3° x 72.2°
    Field Angle - Medium 148.8° x 123.8°
    Field Angle - Light 149.8° x 126.3°
    Field Angle - Heavy 151.7° x 136°
    Lumens - Medium 765 lm
    Lumens - Light 810 lm
    Lumens - Heavy 734 lm
    Illuminance - Medium 17 lux @ 5 m
    Illuminance - Light 16 lux @ 5 m
    Illuminance - Heavy 15 lux @ 5 m
    Selectable PWM via onAir Flex Drive
    Dimensions 12.8 x 1.46 x 1.37 in (326 x 37 x 35 mm)
    Shipping Dimensions 15 x 6.5 x 4 in (381 x 165 x 102)
    Weight 0.975 lb (0.442 kg)
    Exterior Color Black
    Housing Material Extruded Aluminum
    Power Connection Phoenix connector to Bare-wire
    Physical Linking Phoenix connector to Bare-wire
    Control Protocol DMX
    DMX Channels 8 or 10
    Modes/Personalities 8ch-RGBWx2, 10ch-RGBW+Dx2
    Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
    Power and Current 26 W, 0.28 A @ 120 V, 60 Hz
    Power and Current 24 W, 0.31 A @ 208 V, 60 Hz
    Power and Current 24 W, 0.29 A @ 230 V, 50 Hz
    Connector Phoenix
    Pins 5
    IP Rating IP20, dry location
    Temperature (Ambient) -4 °F to 113 °F (-20 °C to 45 °C)
