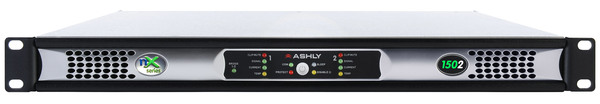

The Ashly nX1502 is a 2-channel, multi-mode Class-D amplifier delivering 150 watts per channel. Engineered with energy-efficient switching amplifier technology and a switch-mode power supply, the nX1502 provides reliable performance with minimal heat output. Each channel features selectable outputs to support low-impedance (2, 4, and 8 ohms) as well as constant voltage operation (25V, 70V, or 100V), making it flexible for a wide range of installations. Compact and lightweight, this amplifier is ideal for integrators deploying sound reinforcement in schools, houses of worship, corporate spaces, and hospitality venues.

All NX Models Include:

• Class-D Switching Amplifier Technology - NX features a universal switch-mode power supply with Power Factor Correction (PFC) that operates from 70VAC to 270VAC.

• Multi-Mode Operation - Selectable Outputs allow you to choose the desired output mode on each channel. Set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or 25V, 70V, or 100V Constant Voltage and you’re set to go.



• Energy Efficiency - NX has power-saving Ashly EMS™ (Energy Management System) which provides an automatic sleep-mode drawing less than 1 Watt (defeatable).

FEATURES

• Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
• Ashly Energy Management System (EMS) for increased efficiency) automatic <1Wsleep-mode (defeatable)
• Switch mode power supply automatically detects 120V or 240V AC operation
• Extensive protection circuitry
• Continuously variable cooling fans
• Front panel power switch and level controls (can be disabled for security)
• Multiple internal power supplies provide increased channel separation and reliability
• Remote DC level control on each input channel (2 RU models only)
• Genuine Neutrik® connectors on 2 RU models for security, safety, and reliability
• Safety / Compliance: cTUVus, CE, FCC, RoHS

• Available in three amplifier options for the series, NX offers 2 or 4-channel models as:

• NX (base model series)

• NXE (networkable)

• NXP (networkable + DSP)

Use Options: Corporate meeting rooms and training facilities - Educational classrooms and lecture halls - Hospitality venues and restaurants - Houses of worship - Distributed 70V/100V paging or BGM systems - Distributed 70v audio speakers with subwoofers
