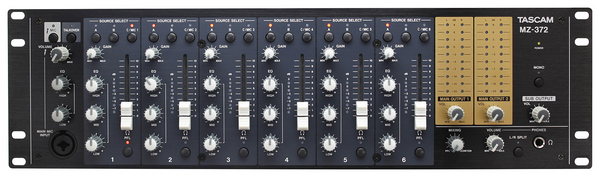

Item # MZ-372
7-CHANNEL DUAL OUTPUT RACKMOUNT MULTI-ZONE MIXER, 12 SETS RCA + 6 MIC/LINE XLR INPUTS / 3RU
Click image to enlarge
Item # MZ-372
7-CHANNEL DUAL OUTPUT RACKMOUNT MULTI-ZONE MIXER, 12 SETS RCA + 6 MIC/LINE XLR INPUTS / 3RU
- UM: EA
- Estimated Weight: 9.0
- Brand: TASCAM
Professional Mixer for Centralized Management of Various Input Sources from a Single Unit
Features:
- Maximum flexibility for audio routing, input selection, and multiple redundant output flow, perfect for integrator, musical instrument, and residential applications
- Multiple inputs include 12 sets of stereo RCA-type, 6 selectable mic/line XLR, and a dedicated front-panel XLR mic input; 19 total input “sets”
- Channel audio sources can easily be selected, muted, and contoured via simple volume sliders, toggle switches/buttons, and knobs
- Two redundant output channels each with stereo XLR balanced and unbalanced RCA-type connectors; each with separate volume control
- Separate stereo booth, recording, and headphone outputs each with independent control
- One additional mic-compatible XLR input on the front panel with “Talkover” function automatically lowering source audio
- Independent three-band EQ per each of the 5 channels and a two-band EQ on the additional front panel microphone input
- Compact 3U rack mount design
| Power consumption | 35W |
|---|---|
| Dimensions | 482(W)×132(H)×93.2(D)mm |
| Weight | 3.2kg |
