Item # MZ-223
5 CHANNEL, 3 OUTPUT RACKMOUNT ZONE MIXER 5 RCA IN & 2 XLR INS / 2RU
- MAP: $599.00 / EA
- List Price: $749.00 / EA
- Log in to see if custom discounts apply
- Pkg Qty: 1
- Case Qty: 2
Click image to enlarge
Item # MZ-223
5 CHANNEL, 3 OUTPUT RACKMOUNT ZONE MIXER 5 RCA IN & 2 XLR INS / 2RU
- Estimated Weight: 7.0
- Brand: TASCAM
Professional mixer that can assign BGM and announcements to 3 zones
Features:
- Easy operation and routing via familiar volume sliders, toggle switches/buttons, and knobs

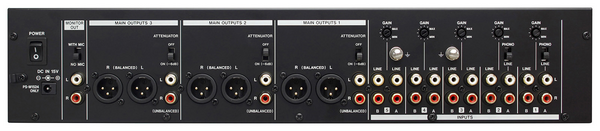

- 3 Independent Zone outputs with stereo XLR balanced and unbalanced RCA connectors per channel
- 5 separate input channels, each with two sets of stereo RCA inputs

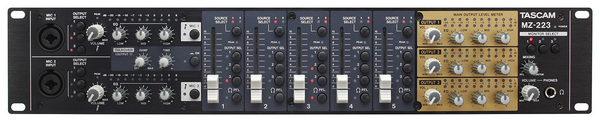

- 2 additional mic-compatible XLR inputs on the front panel
- All audio can be mixed or segregated per channel, and routed to the 3 separate Zones/Outputs
- “Talkover” function automatically lowers other source content while microphones are in use
- Independent 3-band EQ per output channel and per microphone input
- Compact 2U rack mount design
| Power consumption | 35W |
|---|---|
| Dimensions | 482(W)×88(H)×93.2(D)mm |
| Weight | 2.5kg |
