Item # MWHHM
WIRELESS MICROPHONE HAND HELD UHF 100 FREQUENCY TRANSMITTER
Item # MWHHM
WIRELESS MICROPHONE HAND HELD UHF 100 FREQUENCY TRANSMITTER
- UM: EA
- Estimated Weight: 1.0
- Brand: ATLAS IED

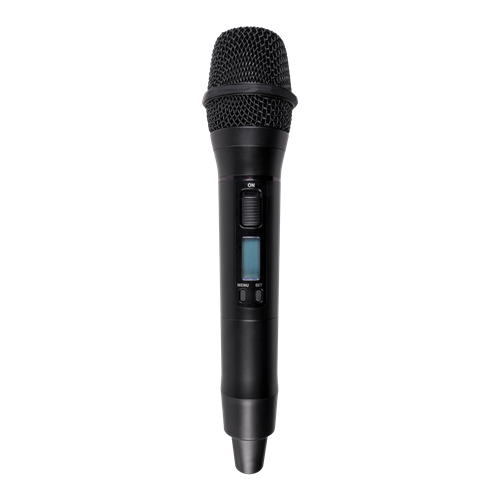

The AtlasIED MWHHM wireless handheld microphone is the ideal choice for a variety of applications ranging from classrooms and conference rooms to lecture halls and live presentations. The MWHHM features a dynamic/condenser type microphone element in a sturdy enclosure that is lightweight and ergonomically designed for comfort. The unit is powered by either standard AA batteries or with NiMH rechargeable batteries (sold separately) allowing for up to 16 hours of usage. The unit operates on the UHF band and syncs to the wireless receiver, AtlasIED model MWRCVR, for connection to local amplification. The integrated LCD displays critical information regarding channel, frequency, and battery level. An optional charger is available when used with NiMH rechargeable batteries, AtlasIED model MWCHGR.
Features:
- Multi-Function LCD Display for Channel / Frequency, Battery Level Indicator, Alkaline / NiMH Battery Selection
- Patented Technology for 2-Way Data Transfer Between Transmitter and Receiver
- Hidden Antenna
- Rugged Metal Housing
- Requires Two (2) AA Batteris with Up to 16 Hours Operating Time
| Frequency Range | UHF 566MHz - 585.8MHz |
|---|---|
| Switching Bandwidth | 20MHz |
| Switchable Frequencies | 100 |
| Frequency Response | 48Hz - 19kHz |
| Directionality | Unidirectional |
| RF Power Output | < 10mW |
| Spurious Emission | > 60dB Below Carrier |
| Dynamic Range | > 110dB |
| Display Type | LCD |
| THD | < 0.5% |
| Dimensions | 2.09" x 10.08" (53mm x 256mm) |
| Weight | .66 lbs. (0.289kg) |
| Warranty Period | 12 months from date of purchase |
