Item # MULTIMIX 12R
12CH 3RU MIXER WITH 8-XLR INPUTS, 2X 1/4" LINE INPUT, STEREO MAIN/MONITOR OUT, HEADHONE OUT, RCA OUT
Item # MULTIMIX 12R
12CH 3RU MIXER WITH 8-XLR INPUTS, 2X 1/4" LINE INPUT, STEREO MAIN/MONITOR OUT, HEADHONE OUT, RCA OUT
- UM: EA
- Estimated Weight: 11.0
- Brand: ALESIS
Alesis’ line combines studio-quality components and effects processing with rock-solid construction for the ultimate in compact mixers.
MultiMix FX mixers are the most compact, affordable, high-quality mixers with built-in 28-bit digital effects and choice of configurations.
For those who don’t need effects, but want 12 channels of transparent Alesis sound packed into a three-space rack, we offer the MultiMix 12R.
Features
- Ultra-affordable 12-channel mixer in a 3U rack
- 8 high-gain mic/line (XLR and 1/4" balanced) inputs with phantom power, 2 stereo balanced 1/4" line inputs
- 2 aux sends (pre- and post-fader), stereo aux return, 8 1/4" inserts, 2-track stereo RCA in and out
- Separate 1/4" balanced main and monitor outs, front-panel headphone out
- Pan control, peak indicator, and 60mm fader on each channel
- 2-band high/ low shelving EQ per channel
- 10-segment LED stereo meters
|

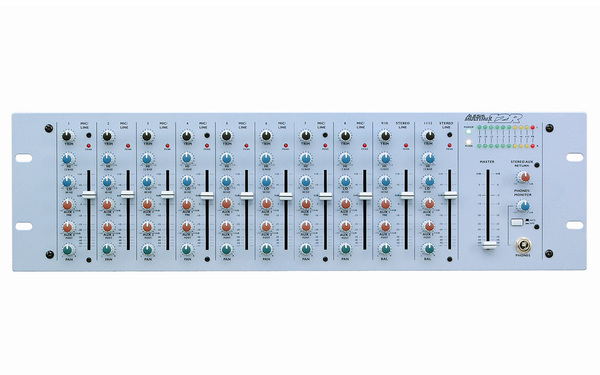

Front-panel (top down) |
8 mic/line channels and 2 stereo channels with trim, 2-band EQ (high shelving at 12kHz, low shelving at 80Hz), aux send 1 (pre-fader), aux send 2 (post-fader), pan/balance, and 60mm fader. |
|
Front-panel (other) |
60mm stereo master fader. Stereo aux return level. Headphone jack with level and master/tape switch. Stereo 10-segment LED meters. Power and phantom power LEDs. |
|

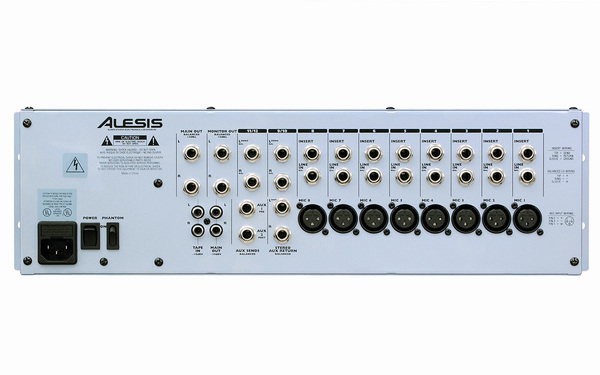

Connections |
All 1/4" TRS except as noted: Mic in x 8 (XLR), line in x 12, channel insert x 8, aux send x 2, stereo aux return, stereo main out, stereo monitor out, headphone out. Stereo tape in and master out (RCA). |
|
Power |
120V AC internal transformer |
|
Dimensions |
5.25 x 19 x 6.25 inches, 3U rackmount |
|
Weight |
8 lbs |
