Item # MTC-CBT-FM2-WH
"FLUSH-MOUNT" LOW PROFILE WALL BRACKET FOR CBT70J-1 AND 70J-1/JE-1 - WHITE
- MAP: $82.00 / EA
- List Price: $98.00 / EA
- Log in to see if custom discounts apply
- Minimum Order Qty: 2
- Case Qty: 2
Click image to enlarge
Item # MTC-CBT-FM2-WH
"FLUSH-MOUNT" LOW PROFILE WALL BRACKET FOR CBT70J-1 AND 70J-1/JE-1 - WHITE
- UM: EA
- Brand: JBL / HARMAN

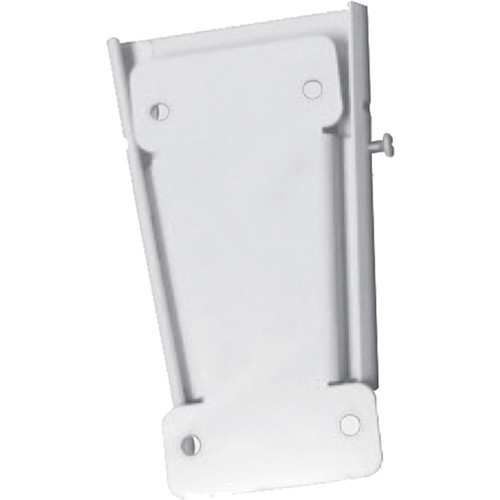

This white MTC-CBT-FM2-WH CBT Flush-Mount Wall Bracket from JBL is designed to be used with the CBT 70J-1 and CBT 70J-1/70JE-1 Line Array Column speakers.
FEATURES
- - For Use with CBT 70J-1 and CBT 70J1/70JE-1 array.
- - Loudspeaker-Mount Section of bracket attaches to the included insert points on the back panel of the speaker (using the M6x15 mm bolts, flat washers & lock washers that come with the speaker). Mounting points are at 254 mm x 70 mm (10 x 2-3/4 inch) spacing.
- - Wall-Mount Section has 3 aligned holes vertically; 3 aligned holes horizontally. Loudspeaker-Mount Section drops easily into Wall-Mount Section. Set screw holds securely.
- - 5 mm thick (10-Gauge AWG) Metal
- - Bracket assembly spaces back of speaker within 20 mm (0.77 inches) of wall (typical).
×
