MTC-81BB8 | PRE-INSTALL BACKCAN FOR 8138, 7.4 LITER, 7"H X 11-3/4" DIA, 11-1/4" MOUNTING CIRCLE, 16 GAUGE STEEL,

Item # MTC-81BB8

PRE-INSTALL BACKCAN FOR 8138, 7.4 LITER, 7"H X 11-3/4" DIA, 11-1/4" MOUNTING CIRCLE, 16 GAUGE STEEL,

  • List Price: $65.00 / EA | MAP: $65.00
  • Log in to see if custom discounts apply
  • Minimum Order Qty: 4
    Click image to enlarge

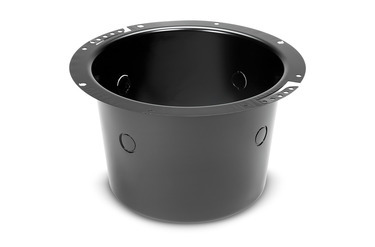

    The MTC-81BB8 is an in-ceiling backcan designed for applications requiring pre-installed backcans. It is compatible with ceiling speakers that have a mounting circle diameter of 286 mm (11.25 in), including the JBL 8138 ceiling loudspeaker. The unit is also compatible with the JBL MTC-81TB8 tile bridge for suspended ceilings.

    Features:

    • Fits 8138 speaker and MTC-81TB8
    • Extra-large 7.4 liter (0.26 cu ft) volume for extra bass
    • Industry standard 286 mm (11.25 in) mounting circle
    • Five conduit knockouts
    • Nesting design minimizes storage space
    Knockouts 22 mm diameter opening
    Five locations for knockouts 4 on side, 1 on top panel
    Suspension Tabs 2 flexible perforated mounting straps
    Attachment Points 4 clip-nuts on mounting circle for M4 screws, plus 4 thru holes for speaker attachment
    Material 16 gauge steel with black polymer E-coating for rust resistance
    • UM: EA
    • Pkg Qty: 4
    • Cast Qty: 4
