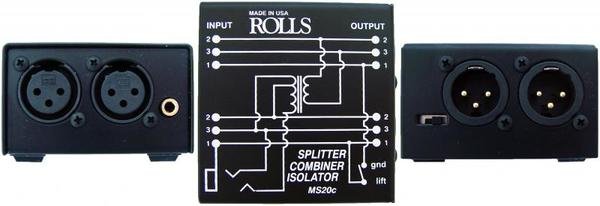

Discover the incredible functionality of the MS20c Splitter / Combiner / Isolator. This versatile device is designed to cater to various audio needs effortlessly. Whether you need to split a single balanced XLR signal into two isolated signals, combine two balanced XLR signals into one, or eliminate buzz and hum by isolating a balanced line, the MS20c is the perfect solution.

Keep in mind that while using the MS20c to combine two condenser microphones, it ensures optimal performance by passing phantom power voltage to only one of the microphones, thanks to its internal isolation transformer. Experience seamless audio manipulation and enhanced sound control with the MS20c Splitter / Combiner / Isolator.

• Input Impedance: XLR: 600 Ohms, 1/8" (3.5mm): 10K Ohms
• Output Impedance: 600 Ohms
• Frequency Response: 35 Hz - 20 kHz
• Max Level: +26 dBm
• Dimensions: 3" x 2.25" x 1.2"
• Weight: 10 Ounces

• Splits balanced XLR input, or 1/8" input to two balanced XLR
• Combines two balanced XLR signals to one XLR output. NOTE: Will only pass phantom power to one microphone.
• One signal is transformer isolated from the other.
• Ground Lift switch for noise elimination
