Item # MKH 8060

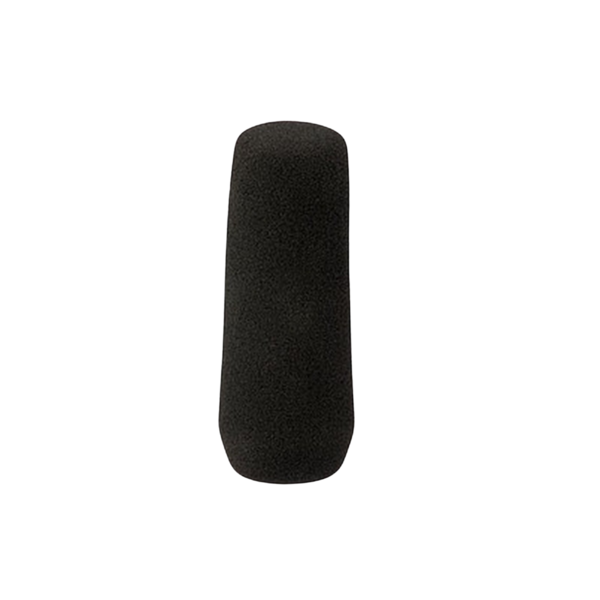

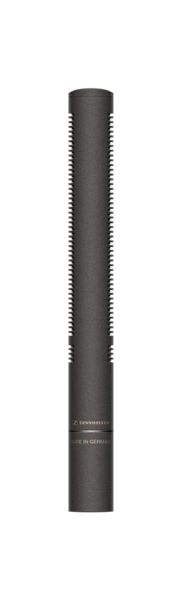

HF MICROPHONE SET. INCLUDES (1) MKH 8060 MICROPHONE BODY (SUPERCARDIOID/LOBE, CONDENSER), (1) MZX 80
Click image to enlarge
Item # MKH 8060
HF MICROPHONE SET. INCLUDES (1) MKH 8060 MICROPHONE BODY (SUPERCARDIOID/LOBE, CONDENSER), (1) MZX 80
- UM: EA
- Estimated Weight: 2.0
- Brand: SENNHEISER
Whether it's a feature film, a documentary, an outdoor shoot or a studio production, the MKH 8060 will provide high quality sound to match your great pictures. Handily compact it shows its strengths as a professional shotgun microphone: The MKH 8060 delivers an absolute natural sound and outstanding off-axis linearity, attenuating sound coming from the side without coloration.
Features:
- Super-cardioid/lobar pick-up pattern
- Very natural sound
- Undistorted off-axis sound
- Exceptionally low inherent self-noise
- Extremely low distortion
- Transformerless and fully floating balanced output
- High output signal
- Rugged metal housing
- Non-reflective Nextel coating
- Extremely weather-proof due to RF circuit
- Ideal for camera mounting due to compact design
- Timbrally identical with the other 8000-series microphones for optimum aural compatibility
| Transducer principle | RF condenser microphone |
|---|---|
| Polar pattern | Supercardioid, Lobar |
| Frequency response | 50 - 25000 Hz |
| Audio frequency response | 50 - 25,000 Hz |
| Equivalent noise level (db) | A-weighted 11 dB(A) CCIR-weighted 23 dB |
| Pick-up pattern | super-cardioid/lobar |
| Max. sound pressure level | 129 dB SPL |
| Audio output | XLR-3M balanced, transformerless, floating |
| Operating temperature (C) | -10 °C to 60 °C (14 °F to 140 °F) |
| Charging current (mA) | 3.3 mA |
| Phantom powering | 48 V +/- 4 V |
| Sensitivity | -24 dBV/Pa (63 mV/Pa) |
| Nominal impedance | 25 O |
| Min. terminating impedance | 2 kO |
| Dimensions | diameter 19 mm, length 175 mm (145 mm excluding XLR module) |
| Height (mm) | 82 |
| Length (mm) | 245 |
| Weight (g) | 501 |
| Width (mm) | 170 |
| Product height | 82 |
| Product weight (g) | approx. 80 g (0.18 lbs) |
| Product width | approx. 19 mm (0.75") |
