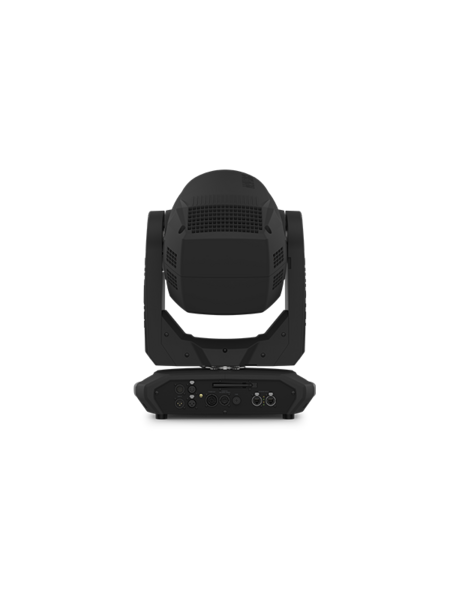

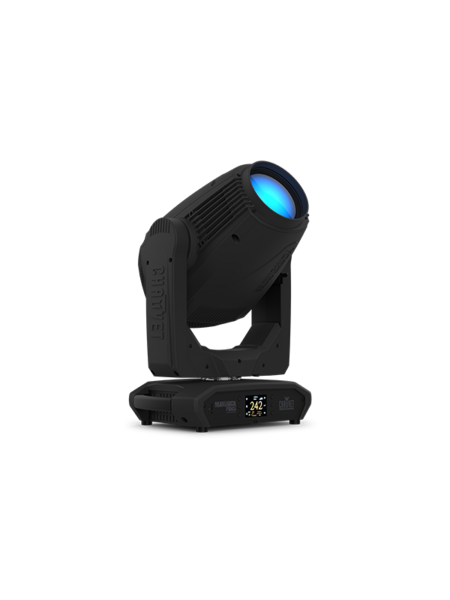

Item # MAVERICKFORCE2SOLOWASH
compact/lightweight 480 W LED yoke single source wash fixture,16-bit dimming
Item # MAVERICKFORCE2SOLOWASH
compact/lightweight 480 W LED yoke single source wash fixture,16-bit dimming
- UM: EA
- Brand: CHAUVET PROFESSIONAL
A powerful single source 480W LED wash engineered to meet lighting designer demand for classic stage wash looks with the modern features LDs expect: CMY + CTO color mixing system offering a wide color palette, independent color wheel with CRI and CTB filters, expansive 8:1 zoom, rotating gobo wheel with interchangeable geometric gobos, linear 5-facet prism, and frost. Housed in a compact and lightweight design and calibrated to match the colors of other Force fixtures in the rig. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.
Features:
- Fully featured, compact and lightweight 480 W LED yoke single source wash fixture including CMY + CTO color mixing, a color wheel, zoom optics, and one rotating gobo wheel
- 16-bit dimming of master dimmer for smooth control of fades
- Variable CMY + CTO color mixing system to create a wide pallet of colors
- CRI and CTB filters on color wheel for added flexibility
- DMX, WDMX, sACN, and Art-Net for full flexibility of control options
- RDM enabled for remote addressing and trouble shooting
- 6.3° to 55.7°zoom range for variable beam sizes
- Linear 5-facet prism, geometric gobos and frost for beam control
- True 1 compatible power input
- Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
- USB slot for software uploads
- Battery backup display with auto-rotate depending on fixture orientation
- Fail Safe Ethernet connectivity allows for data to pass even if fixture power is lost
| Light Source | 1 LED (CW) 480 W (15 A), 50,000 hours life expectancy |
|---|---|
| Color Temperature (at full) | 7308 K |
| Color Temperature (range) | 7308 to 3007 K |
| CRI | 70.4 (with filter: 87.7) |
| Front Lens Diameter | 178 mm |
| Beam Angle | 6.3° to 32.8° |
| Field Angle | 9.3° to 49.5° |
| Cutoff Angle | 11.2° to 55.7° |
| Zoom Range | 6.3° to 55.7° |
| Lumens – Source | 39,200 |
| Lumens – Output | 30,967 |
| Illuminance (6.3°) | 91,362 lux @ 5 m |
| Illuminance (55.7°) | 3989 lux @ 5 m |
| Selectable PWM | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz |
| Pan and Tilt | 540°/270° |
| Pan and Tilt Ranges | 540°, 360°, 180° pan/270°, 180°, 90° tilt |
| Colors | 7 + open, split colors, continuous scroll at variable speeds |
| Colors | CMY flags, CTO flag |
| Gobos | 7 + open (7 Metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Zoom | Motorized |
| Focus | Motorized |
| Frost | Motorized |
| Iris | Motorized |
| Prism | 5 Facets, motorized, rotating |
| Strobe Rate | 0 to 20 Hz |
| Move-in-Black | Yes |
| Dim Curves | 5 |
| Dimensions | 16.8 x 10.7 x 25.8 in (426 x 272 x 656 mm) |
| Weight | 53.4 lb (24.2 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum diecast, High-impact flame-retardant polymer, Steel |
| Power Connection | Seetronic Powercon IP65 |
| Power Input/Output | Seetronic Powercon IP65 |
| Data Connectors | 3-pin XLR, 5-pin XLR, Neutrik RJ45 Connectors in/out |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | Type-C USB |
| Control Protocol | Art-Net, sACN, RDM, DMX, W-DMX |
| DMX Channels | 21ch or 27ch |
| Art-Net/sACN Channels | 21ch or 27ch |
| Modes/Personalities | 2 personalities (21ch or 27ch) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 2 units @ 120 V; 3 units @ 208 V; 3units @ 230 V |
| Power and Current | 660 W, 5.57 A @ 120 V, 60 Hz |
| Power and Current | 649 W, 3.24 A @ 208 V, 60 Hz |
| Power and Current | 641 W, 3.07 A @ 230 V, 50 Hz |
| Battery type | Lithium Ion |
| Rechargeable | Yes |
| Battery Charge Time | 5 hours |
| Battery Life | 1 hours |
| Battery Power | 3.7 V, 500 mAh |
| IP Rating | IP20, dry location |
| Temperature (Operating) | 14 °F to 113 °F (-10 °C to 45 °C) |
