MA4-D | MA4-D-US DSI MA4-D, 4 CH AMP, DANTE, NP VER

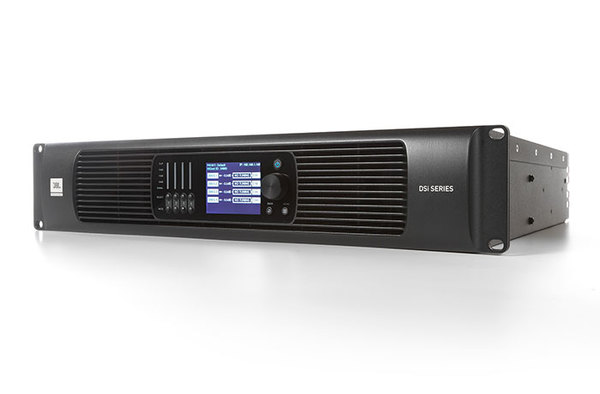

The MA4-D is a 2RU, four-channel amplifier from the JBL DSi 2.0 series, designed for cinema audio applications. It features bridgeable outputs and supports high-power-density 2Ω mode, enabling a single channel to drive up to four JBL surround speakers. The amplifier integrates Crown DriveCore technology and 32-bit/96kHz floating-point DSP, providing high power density, stability, and audio fidelity.

Available in analog-plus-digital "D" versions, the MA4-D includes Dante/AES67 connectivity for networked audio distribution and direct interfacing with Dolby Atmos without additional processing hardware. It supports SNMP connectivity for integration with third-party theater management and cinema control systems. The amplifier includes JBL Cinema Speaker presets to optimize audio playback and protect connected equipment.

Features:

• 4 channels with bridgeable outputs
• Designed to meet power requirements of JBL cinema speakers
• High power output at 2Ω for up to 4 surround speakers per channel
• Direct Dolby Atmos interface
• SNMP and Ethernet connectivity for networking and control
• Dante/AES67 connectivity
• HiQ port for HARMAN Audio Architect control software
• 96kHz/32-bit floating-point processing with FIR filtering, LevelMAX limiting, 8-channel parametric EQ, and delay settings
• Crown DriveCore technology for efficiency and reliability
• Built-in JBL Cinema Speaker presets for power matching and system configuration
• Recall presets, mute channels, monitor amplifier health, and power control via GPIO/AUX port
• Front-panel LCD and encoder interface for configuration
• Ultra-quiet operation (51dBA max fan noise)
• Standard 19-inch 2RU rackmount unit
• Frequency response: 20 Hz–20 kHz
• THD: 0.35%
• Power supply: 100–220V +/- 10%, 50/60 Hz
• Standard IEC type power connector, 320 inlet for detachable connector
• Accommodates 10AWG wire
