Item # M5400-PM
MAX 5400 POWER MANAGEMENT W/ VOLTAGE REGULATION, 2 RACK UNITS, 11 OUTLETS
Item # M5400-PM
MAX 5400 POWER MANAGEMENT W/ VOLTAGE REGULATION, 2 RACK UNITS, 11 OUTLETS
- UM: EA
- Brand: PANAMAX
Voltage Regulation
Improve system performance and prolong equipment life by providing a consistent level of optimal power to your equipment.
Improves Picture and Sound Quality
Level 4+ Power Cleaning and Filtration eliminates common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.
Monitors Incoming Line Voltage and Provides a Visual Indication of Power Level
Panamax patent pending AVM circuitry continuously monitors the incoming power as displayed on the digital voltmeter. In case of an undervoltage or an overvoltage, a flashing lightning bolt will be displayed in red in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.
Reduces Cross-Contamination Between Components
The M5400-PM is designed to provide noise isolation between five isolated outlet banks including two high current outlets so that any noise created by an A/V component can not contaminate the power going to equipment plugged into another outlet bank.
Features
Clean Power Level 4+
Panamax PM family highest level of power filtration plus voltage regulation ensure components receive a consistent level of clean power. Improves picture and sound quality by eliminating noise across the entire AC bandwidth.
Voltage Regulation
Improve system performance and prolong equipment life by providing a consistent level of optimal power to your equipment.
AVM (Automatic Voltage Monitoring)
Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.
High Current Outlets
2 outlets for equipment with high power demands (Amps/Subwoofers).
USB Charger
1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device.
Gaming LAN Port
Easy access to LAN port on front panel. Perfect for online gaming.
5 Isolated Outlet Banks
Isolating outlet banks from one another prevents noise contamination between components.
12 Volt Trigger
Allows source equipment to activate or deactivate the switched outlets on the M5400-PM.
Power Sequencing
Guards against blown fuses and potentially damaging speaker thump by automatically powering outlets on and off in sequence.
11 Outlets
5 Always On, 4 Switched, 2 Switched High Current.
|
Family |
PM Series |
|
Line Voltage |
120 (Volts) |
|
Number of Outlets |
11 |
|
Number of Isolated Banks |
5 |
|
Outlet Descriptions |

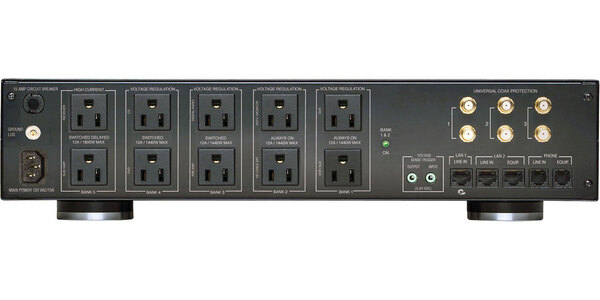

All 11 outlets voltage regulated, filtered, and surge protected. Banks 1 and 2 are always on, Bank 3 and 4 are switchable from front panel power button or 12V trigger, Bank 5 outlets are high current and switchable from power button or 12V trigger |
|
Rack Mountable |
Yes |
|
Rack Ears Included |
Yes |
|
Front Panel Meter(s) |

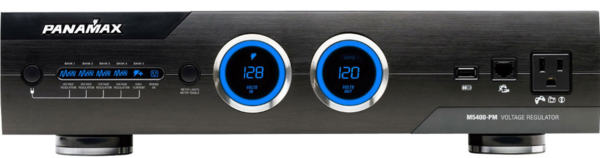

1 voltmeter (volts in), 1 voltmeter(volts out)/ammeter combo |
|
Front Media Light(s) |
No |
|
Control |
On/Off control of switched outlets through front panel power button or rear panel DC trigger. |
|
Voltage Regulation |
Regulation capture range: 100VAC to 136VAC, Output voltage range: 120VAC ± 6 VAC |
|
Compliance |
cCSAus |
|
USB Charging |
1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device. |
|
Low Voltage Trigger |
12 V, In/Out |
|
AC Power Cord |
10 ft. detachable |
|
Dimensions |
17" W x 12.75" D x 3.5" H, (4.1" Including feet) |
|
Weight |
20 lbs |
