Item # M2000-SM
SURFACE MOUNT SOUND MASKING TRANSDUCER
Item # M2000-SM
SURFACE MOUNT SOUND MASKING TRANSDUCER
- UM: EA
- Estimated Weight: 19.0
- Brand: ATLAS IED

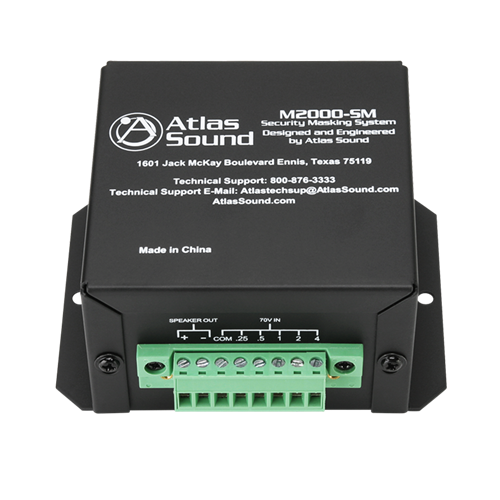

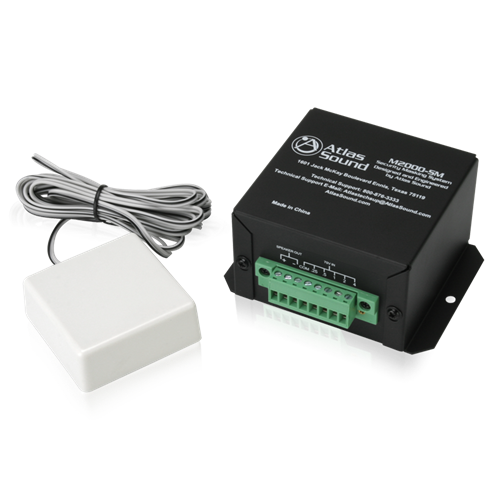

The AtlasIED M2000-SM is a valuable security product that can be used on any flat surface, including windows, doors, walls, and ducts. The subtle design of the M2000-SM two-part transducer / transformer provides discrete placement and mounting options. Incorporating NXT Exciter Technology in a 1", coil-mounted plate, the transducer offers installation, while the transformer can be remote-mounted and adjusted with variable tap settings. Note: The M2000-SM requires a sound masking generator and 70.7V amplifier for operation.
Note, this product requires a masking generator and 70.7V amplifier to operate.
Features:
- Two Part Assembly
- Works with Many Flat Surfaces

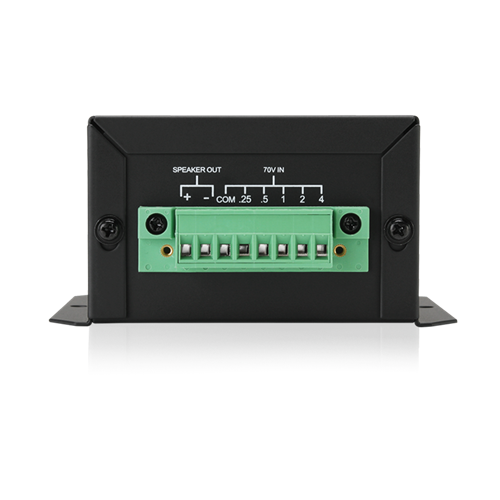

- Transformer Taps 1/4 - 4 Watts
- Security Masking Setup for Privacy
| Transformer Taps | .25, .5, 1, 2, & 4 Watts |
|---|---|
| Height | 1" (25.4 mm) |
| Length / Width | 21/2" (63.5 mm) Square |
| Cable Length | 117" (3 m) |
| Height | 2"(60.3 mm) |
| Length / Width | 31/2" (88.9 mm) Square |
| Warranty Period | 60 months from date of purchase |
