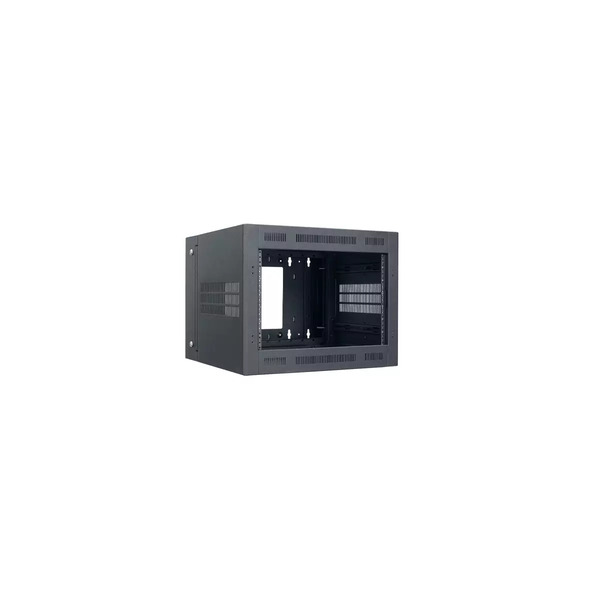

Item # LWR-723
RACK-SECTIONAL WALL MOUNT-7U, 23IN DEEP, 1PR ADJ RAILS, BLACK
Click image to enlarge
Item # LWR-723
RACK-SECTIONAL WALL MOUNT-7U, 23IN DEEP, 1PR ADJ RAILS, BLACK
- UM: EA
- Estimated Weight: 82.0
- Brand: LOWELL

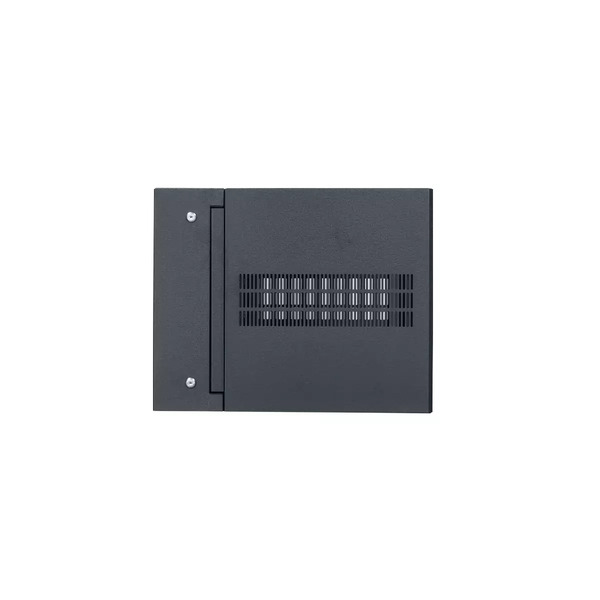

- Backbox: 5.80 in. deep with keyhole mounting slots on 16 in. centers, center opening to mount over electrical pull boxes, ground stud, embossed dimples on back plane for installation of board-mounted accessories, laser-cut knockout panels on top/bottom, and two keyed side locks.

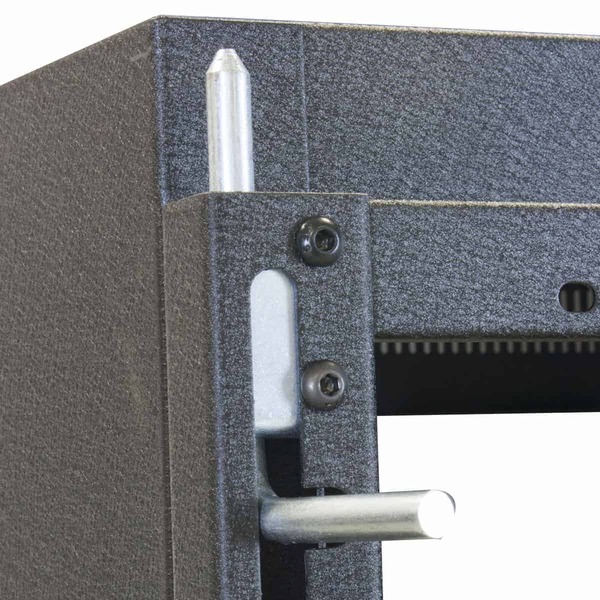

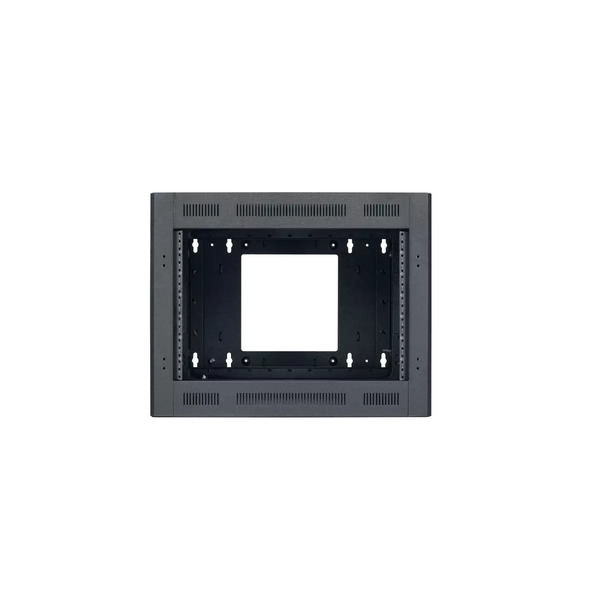

- Front Mounting Section: Fully gusseted corners, triple formed wrap design mounts to backbox from inside with two heavy duty spring-loaded L-pins (self seating, positive locking).
- Welded sides with vents
- Beveled front corners
- Knockouts for wireless antennas
- One pair adjustable mounting rails tapped 10-32
- Integral top/bottom rails on E.I.A. spacing for mounting or lacing
- Black wrinkle textured powder epoxy finish
- Pilot Point screws with captive washers
- Grounding stud
×
