Description:

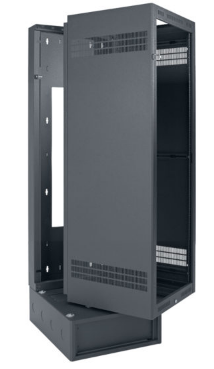

Wall-mount rack swings open with a single-release grasp and pivots smoothly on internal spring-loaded hinges and stainless steel ball transfers set into the base, which adds an additional 4U to load capacity. Slam latch closure.

Features:

·        Cabinet with welded sides opens with a single-release grasp, then pivots smoothly on stainless steel ball transfers, swinging 90 degrees to access equipment connections (field-changeable to left hand swing). Slam latch closure. Top opening with integral E.I.A. rail accommodates standard 19 in. accessories or included solid closure panels.

·        One pair adjustable mounting rails tapped 10-32, printed RU scale

·        Backbox (4.69 in. deep) mounts on 16 in. centers. Large central cutout fits over wall obstructions. Removable knockout panel on top has knockouts for wireless antennas and combination knockouts for conduit.

·        Support base (4U) has access panels and stainless steel ball transfers to support cabinet

·        Black wrinkle powder epoxy finish

·        Load capacity 500 lbs.

·        Pilot Point screws with captive washers
