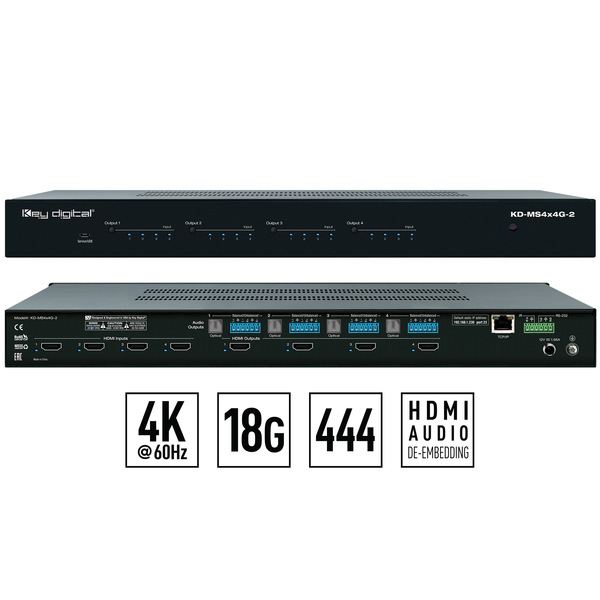

4K HDMI MATRIX SWITCHER: 4 INPUTS X 4 OUTPUTS WITH INDEPENDENT HDMI AV AND AUDIO DE-EMBED PORTS
Item # KD-MS4X4G-2
4K HDMI MATRIX SWITCHER: 4 INPUTS X 4 OUTPUTS WITH INDEPENDENT HDMI AV AND AUDIO DE-EMBED PORTS
- UM: EA
- Estimated Weight: 8.0
- Brand: KEY DIGITAL
Key Digital’s KD-MS4x4G-2 is a 4K matrix switcher with support of 18Gbps signal bandwidth and HDCP 2.2 for routing and distributing 4 HDMI source signals to 4 displays. KD-MS4x4G-2 features 4 analog balanced/unbalanced and optical digital audio outputs which may be independently controlled to follow the HDMI output selection or separately switched to accommodate a wide variety of usage applications in professional AV systems integration. KD-MS4x4G-2 supports all SD, HD, VESA and Ultra HD/4K video standards up to and including UHD/4K 18G and 1080p. All UHD/4K EDID handshake files include HDR header information.
Features
HDMI Matrix Switching: 4 HDMI sources to 4 HDMI outputs
Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
Audio De-Embed: 6 pin balanced / un-balanced and digital optical outputs
Independent Audio and Video Matrix: Output HDMI and Audio ports may route together or independently
Dolby Digital & DTS Audio: Supports 2-channel and multi-channel surround formats up to DTS-HD Master Audio, DTS:X, Dolby TrueHD, Dolby Atmos
Web UI: Control AV routing and other basic functions from any web browser
Key Digital App & KDMS Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital App and Key Digital Management Software Pro (KDMS Pro) PC setup Software
|
Input (Each) |
1 HDMI Connector, Type A, 19 Pin Female |
|
Output (Each) |
1 HDMI Connector, Type A, 19 Pin Female |
|
Output (Each) |
Balanced/unbalanced line level audio on 6-pin terminal block. Drives 2VRMS line audio input with a sampling rate of 192KHz |
|
Output (each) |
TOSlink optical digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz |
|
Video Bandwidth |
TMDS bandwidth 18 Gbps |
|
DDC Signal (Data) |
Input DDC Signal - 5 Volts p-p (TTL) |
|
HDMI Video/Audio Signal |
Input Video Signal - 1.2 Volts p-p |
|
DDC Communication |
EDID and HDCP Bi-directional buffering to Display and Source |
|
Analog Audio Max Output Level |
4dBu on 150kO, DC coupling |
|
Audio Bandwidth |
20Hz to 20kHz @ 0dBu |
|
TND + Noise |
0.33% @0dBu @ 1kHz |
|
Optical Max Output Level |
1Vpp on 75O, DC coupling |
|
Wired IR |
modulated IR signal input, 0-5V TTL or -10 to +10V |
|
Power |
12V/1.66 (20W) AC Power Supply with Grounded, 2.1mm ID DC Power Jack with Screw In Type |
