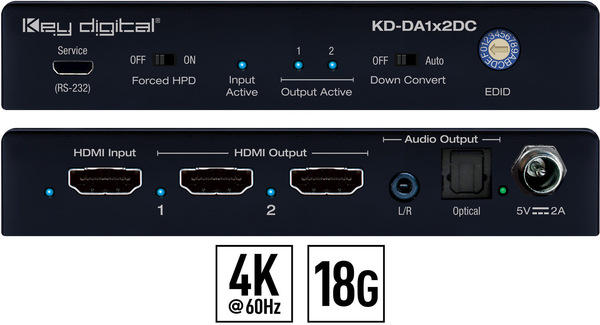

4K 18G 1x2 HDMI Distribution Amplifier with Audio De-Embed, 4K to 1080p Down-Convert

Features

• HDMI Signal Distribution: 1 HDMI source to 2 HDMI outputs/displays

• Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

• HDCP Licensing: Fully licensed and compatible with HDCP 2.2

• HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels

• Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p

• 4K to 1080p Down Convert: When enabled, resolution conversion is applied to individual outputs(s) based on EDID from the connected display.

• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

• Audio De-embedding: Audio of the connected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors.

• Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake

• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from output/display 1

• Digital Audio Format Support: DTS-HD Master Audio, DTS:X, Dolby TrueHD, Dolby Atmos

• CEC Disconnect: Prevents unwanted control of source
