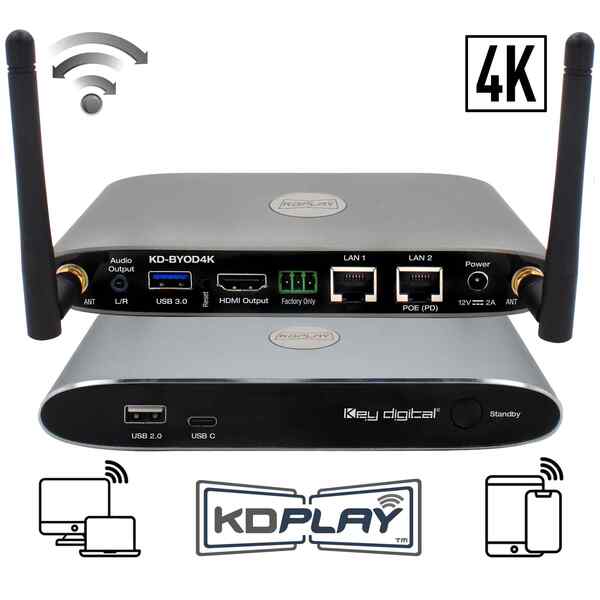

The KD-BYOD4K is a wireless presentation gateway compatible with Windows, Mac, iOS, and Chrome devices. It offers a stunning 4K output resolution with 30 frames per second for a superior video casting experience.

This system places a strong emphasis on user experience, ensuring smooth connectivity and ease of operation.

The device is an ideal solution for environments where users no longer wish to manage various adapters or dongles and want to present from devices without video connections.

Features

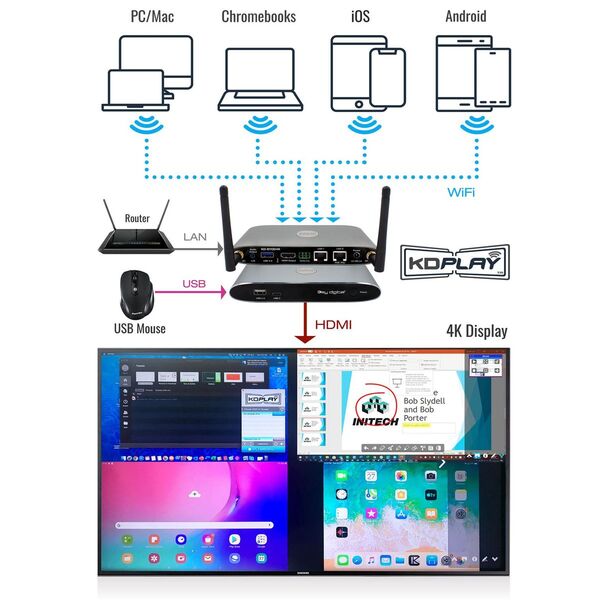

• Wireless Presentation Gateway: Connect via WiFi to wirelessly cast content from device
• Bring Your Own Device: Cast from Windows and Mac computers or Android devices using KDPlay™ software and app. Cast from iOS devices with AirPlay. Cast from Chrome OS using Chrome browser tool for tab or desktop
• Smooth Video: Glitch-free AV experience due to optimizations for video content
• Multi-Presenter Mode: Up to four presenters may share content at same time with auto adjusting screen layout. User preference layout setup for three or four presenters allows for optimal window placement based on usage

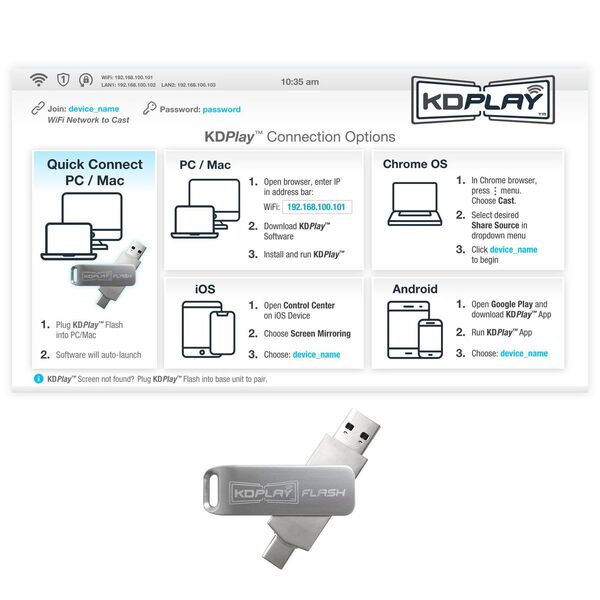

• KDPlay™ Flash (KD-BYODFD) Included: Software auto-launcher with USB and USB-C connections allows. Additional KDPlay™ Flash sold separately
• 4K/UHD Source & Display: Supports incoming signals and outputs at 4K/UHD for optimal clarity of spreadsheets and data content
• Annotation and White Board: Screen overlay tools for real-time collaboration. Screen captures are downloaded by QR code or in web browser
• Extended Monitor: Feature enables dual display setups such as video conference and presentation content view on side-by-side panels. Virtual Driver installation required for this feature
• Touch Screen / Mouse Forwarding: Connect touchscreen or mouse USB to unit to point and click on casted device
• Customizable Home Screen: Load customer's logo or desired image to show signage and branding when not casting
• Video Resolution: Selectable 4K 3840x2160 @ 30fps or 60fps [4:2:0] 10.2Gbps, 1920x1080p @ 60fps, 1280x800p @ 60fps, 1280x720p @ 60fps output resolution options based on EDID from connected display
• Audio De-embedding: Audio of the casted device is de-embedded at the unit’s analog L/R audio connector for ease of integrating with audio amplification and mixing system

Additional Features

• WiFi Direct or LAN Connection: May act as the wireless access point, or may be accessed by devices via the connected network
• Easy Connection: Up to 16 simultaneous devices may connect, with access always provided to new connecting devices and automatic disconnect of oldest non-casting devices in case of maximum being reached
• Moderator Management: Administrator may start & stop device casting via web control page
• Content Preview: Collapsible dock on side of display provides preview thumbnail and name of devices casting via KDPlay app
• Web GUI Administration: Access unit setup, moderator, and security tools on web browser through LAN
• Four-Level Security: Including casting / pairing pin and Device-type permission options, AES-256 + RSA-1024 encryption
