JRX212 | 12" 2-WAY STAGE MONITOR PASSIVE SPEAKER SYSTEM; 1000W PEAK POWER HANDLING, 129DB MAX SPL / BLACK
Item # JRX212
12" 2-WAY STAGE MONITOR PASSIVE SPEAKER SYSTEM; 1000W PEAK POWER HANDLING, 129DB MAX SPL / BLACK
Click image to enlarge

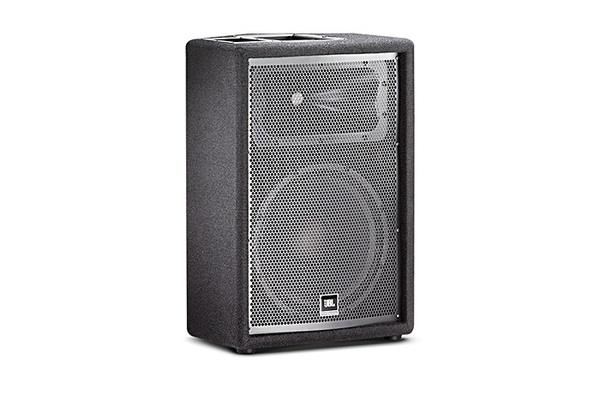

The JRX212 is a portable two-way loudspeaker system featuring a 12-inch woofer. It is designed for stage monitoring applications in live performance environments.
Features:
- 12 in low frequency driver with 64 mm edgewound ribbon voice coil for greater efficiency and power handling
- 2414H-C 25 mm polymer diaphragm compression driver for improved high frequency performance
- Advanced network topology crossover design for coherent frequency response
- High-voltage capacitors and inductors to handle high power without saturation
- Progressive Transition high frequency waveguide for superior coverage and reduced distortion
- Rugged enclosure made from 19 mm MDF for durability and improved low-frequency performance
- SonicGuard protection for high frequency driver without performance interruption
- Non-resonant all-steel handles
- 18-gauge hexagon perforated steel baffle for component protection
- Dual-angle pole-mount socket allowing 10° tilt for uniform audience coverage
| Power Rating | 250 W / 1000 W |
|---|---|
| Frequency Range (-10dB) | 60 Hz - 20 kHz |
| Frequency Response (±3 dB) | 80 Hz - 18 kHz |
| Sensitivity (@1m) | 98 dB SPL (1w/1m) |
| Nominal Impedance | 8ohms |
| Recommended Amplifier Power | 250 W to 500 W into 8ohms |
| Maximum SPL (1m) | 128 dB |
| Nominal Dispersion | 90º x 50º |
| Crossover Frequency | 2.1 kHz |
| Inputs | Neutrik Speakon NL-4 (x1), 0.25 in TS phone jack (x1), parallel |
