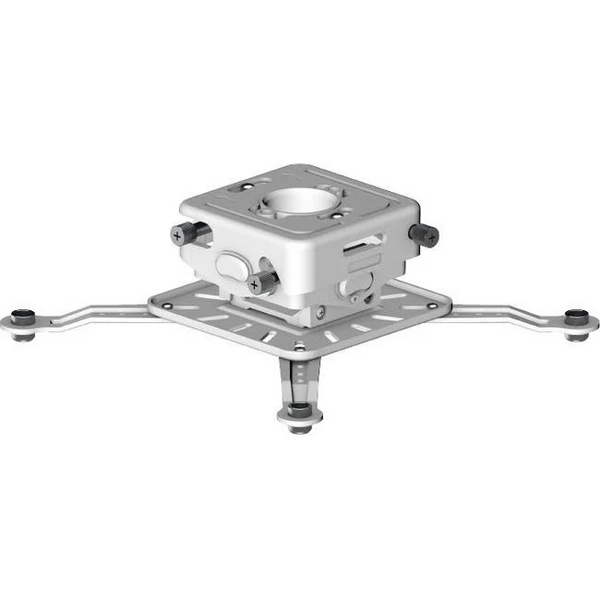

SyncPro™ Universal mount for projectors with micro adjustment

SyncPro This top-end projector mount is simply the easiest to install and precisely adjust without the use of tools. Rotate the large, easy to grip knobs to make all necessary adjustments during installation. Crimson lead screw adjustment mechanism is unique and precise. Heavy-duty design makes it ideal for larger projectors and/or those with an off-center lens.

• Security hardware included for all connection points
• Completely pre-assembled mounting interface for quick installation
• Fully adjustable roll, pitch and yaw
• Quick release mechanism allows for easy service of projector
• Mounts to any 1.5" NPT threaded pipe
• ADJR3 adapter extenders available to increase max mounting pattern for larger projectors
• Pre-sorted hardware pack for easy installation

• Weight capacity                                  70lb (31.8kg)

• Max mounting pattern                        13.8" (351.5mm) diameter

• Micro Adjust                                       Yes

• Height                                                 3.46" (88mm) from ceiling to projector surface

• Pitch (up/down)                                   +/- 15°

• Roll (side to side)                                 +/- 8°

• Rotation (yaw)                                    360°

• 1.5" NPT thread compatible               Yes

• Mounting interface                             1.5" NPT thread compatible

• Construction                                       aluminum/high-grade cold rolled steel

• Product finish                                      scratch resistant epoxy powder coat

• Product weight                                    2.2lb (1kg)

• Package specifications                         14"x7"x3"

• Color                                                   white (also comes in black)

• Model numbers                                   JR3 (black), JR3W (white)

• Warranty                                            limited lifetime
